How to Read a GD&T Drawing — Detailed Guide

Geometric Dimensioning and Tolerancing (GD&T) drawings can look complicated at first because they combine dimensions, symbols, datums, feature control frames, modifiers, and tolerance zones. However, once you follow a systematic method, reading a GD&T drawing becomes much easier.

Also read: 10 Golden Rules of reading GD&T

The key principle is:

Read the drawing from the overall part → dimensions → datums → Feature Control Frames → tolerance zones → inspection.

---

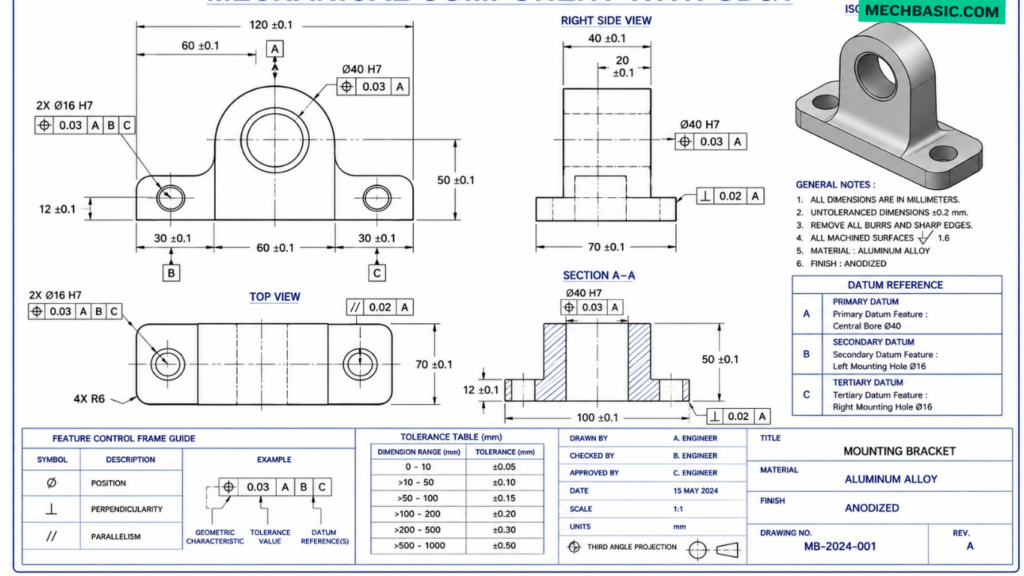

1. Understand the Drawing

Identify the Part

Before interpreting any GD&T requirement, first understand what the component is and what it does.

Look at:

• Part views
• Section views
• Detail views
• Title block
• Drawing notes
• Material specification
• Units
• Scale
• Revision information

---

2. Read Dimensions

Check Size

Next, identify the basic dimensional requirements.

Dimensions tell you about:

• Length
• Width
• Height
• Diameter
• Radius
• Thickness
• Hole size
• Feature spacing

---

Common Dimensional Tolerances

Bilateral Tolerance

Example:

50 ± 0.10 mm

Acceptable range:

49.90–50.10 mm

---

Unilateral Tolerance

Example:

20 +0.05 / 0 mm

Acceptable range:

20.00–20.05 mm

---

Limit Dimensions

Example:

49.90–50.10 mm

The upper and lower limits are directly specified.

---

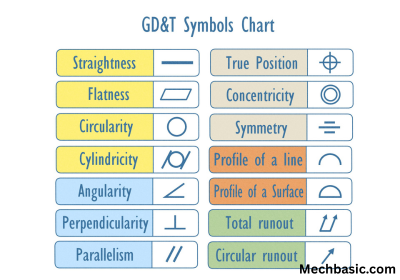

3. Identify GD&T Symbols

Common GD &T symbols include:

Symbol/Control	Main Meaning
Straightness	Straight form
Flatness	Flat surface
Circularity	Roundness
Cylindricity	Cylindrical form
Parallelism	Parallel orientation
Perpendicularity	90° orientation
Angularity	Specified angle
Position	Feature location
Profile	Shape/profile
Runout	Variation during rotation

After understanding the dimensions, identify the GD&T symbols on the drawing.

The controls are generally divided into categories.

Form Controls

Control the shape of a feature:

• Straightness
• Flatness
• Circularity
• Cylindricity

Orientation Controls

Control feature orientation:

• Parallelism
• Perpendicularity
• Angularity

Location Controls

Control feature location:

• Position
• Concentricity
• Symmetry in traditional classifications

Profile Controls

Control:

• Profile of a line
• Profile of a surface

Runout Controls

Control rotational variation:

• Circular runout
• Total runout

---

4. Read Feature Control Frames

The Feature Control Frame (FCF) is one of the most important parts of a GD&T drawing.

It is normally divided into compartments.

A conceptual example is:

⌖ | ⌀0.10 | M | A | B | C

Read it from left to right.

First Box — Geometric Characteristic

The first compartment identifies the GD&T control.

⌖ | ⌀0.10 | M | A | B | C

For example:

⌖ means position.

Other examples include:

• ∥ → Parallelism
• ⊥ → Perpendicularity
• ⏥ → Flatness
• ○ → Circularity

Second Box — Tolerance

⌖ | ⌀0.10 | M | A | B | C

The next compartment gives the tolerance value.

Example:

0.10

means the specified geometric tolerance is 0.10, subject to the control and applicable standard.

If a diameter symbol appears:

⌀0.10

the tolerance zone is cylindrical.

Third Box — Modifier

⌖ | ⌀0.10 | M | A | B | C

A modifier may appear after the tolerance.

Common modifiers include:

MMC

Maximum Material Condition

LMC

Least Material Condition

RFS

Regardless of Feature Size

Understanding modifiers is particularly important for feature-of-size controls such as position.

Remaining Boxes — Datums

⌖ | ⌀0.10 | M | A | B | C

The remaining compartments identify the datum references.

Example:

⌖ | ⌀0.10 | M | A | B | C

can be interpreted conceptually as:

• Position control
• Cylindrical tolerance zone of 0.10
• MMC modifier
• Datum A
• Datum B
• Datum C

The exact interpretation must follow the applicable GD&T standard.

---

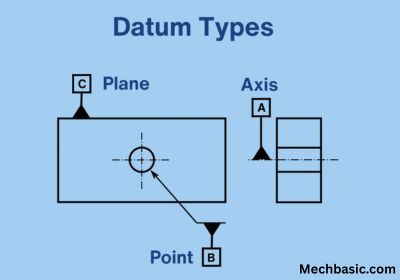

5. Identify Datums

Datums provide the reference framework for evaluating geometric requirements.

A drawing may identify:

Datum A

Primary reference

Datum B

Secondary reference

Datum C

Tertiary reference

Together they can establish a datum reference frame.

Also read: Why Datum planes are important?

---

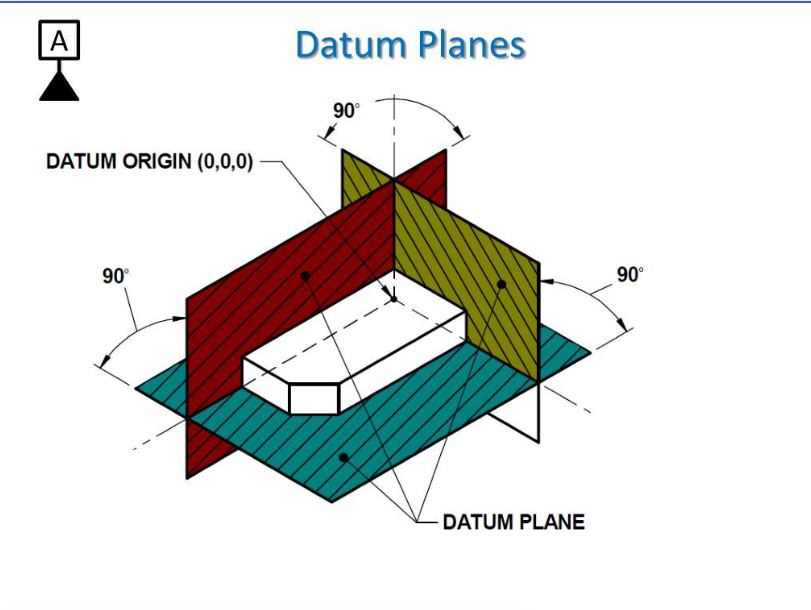

6. Understand the Datum Reference Frame

A common three-datum system can be understood conceptually using the 3-2-1 constraint principle.

Primary Datum

The primary datum establishes the main orientation and restricts the greatest number of degrees of freedom.

Secondary Datum

The secondary datum establishes additional orientation/location constraints.

Tertiary Datum

The tertiary datum completes the reference system.

---

7. Check Tolerance Zones

---

8. Apply the Datum Reference

Evaluate Orientation & Location

Once the datum system has been identified, determine how the feature is evaluated relative to it.

For example:

⊥ | 0.05 | A

means the controlled feature’s orientation is evaluated relative to Datum A.

Similarly:

∥ | 0.05 | A

means the feature is evaluated for parallel orientation relative to Datum A.

And:

⌖ | ⌀0.10 | A | B | C

uses the specified datum reference framework to establish the feature’s theoretical location and orientation requirements.

---

9. Determine What Feature Is Being Controlled

This is an important step.

The Feature Control Frame may be connected to a feature by:

• Leader line
• Extension line
• Dimension line
• Feature symbol
• A datum feature symbol

Determine exactly what the requirement applies to.

It could control:

• A surface
• A hole
• A shaft
• An axis
• A slot
• A pattern
• A curved surface

---

10. Determine Whether the Control Applies to a Surface or Axis

This is especially important for orientation controls.

Surface Control

A surface may be controlled using:

• Flatness
• Parallelism
• Perpendicularity
• Profile

Axis Control

A feature of size such as a hole or shaft may have its derived axis controlled using:

• Position
• Perpendicularity
• Parallelism
• Angularity

The tolerance-zone shape can differ depending on the feature being controlled.

---

11. Check Material Condition Modifiers

When you see a modifier in the Feature Control Frame, stop and interpret it carefully.

MMC

Maximum Material Condition

For a:

• Hole → smallest allowed size
• Shaft → largest allowed size

MMC can be particularly important for functional assembly requirements.

---

LMC

Least Material Condition

For a:

• Hole → largest allowed size
• Shaft → smallest allowed size

---

RFS

Regardless of Feature Size

The geometric tolerance applies independently of actual feature size, unless another applicable rule modifies that requirement.

---

12. Understand Bonus Tolerance

Suppose a hole has a position tolerance at MMC.

If the hole becomes larger than its MMC size, additional positional tolerance may become available under the applicable MMC rules.

This is known as:

Bonus Tolerance

Conceptually:

Actual departure from MMC = potential additional geometric tolerance

This is one reason why GD&T can provide more functional flexibility than simply using traditional ± coordinate tolerances.

---

13. Look for Datum Feature Symbols

Identify the Actual Datum Features

Do not confuse a datum feature with the datum itself.

For example:

A physical surface may be identified as a datum feature.

The theoretical plane derived from that feature is the datum.

Similarly:

A physical cylindrical feature can establish a datum axis.

This distinction becomes important during inspection.

---

14. Check Drawing Notes

A GD&T drawing may contain important information outside the Feature Control Frames.

Check:

• General tolerances
• Units
• Surface finish
• Material
• Heat treatment
• Deburring requirements
• Edge conditions
• Inspection requirements
• Reference dimensions
• Applicable standards
• Revision notes

A complete drawing interpretation requires considering all applicable drawing information.

---

15. Understand Reference Dimensions

What Is a Reference Dimension?

A reference dimension is generally provided for information rather than as an independently toleranced manufacturing requirement.

It may help communicate:

• Approximate size
• Calculated dimension
• Inspection information
• Relationship between features

Do not treat a reference dimension as an ordinary independently controlled dimension unless the drawing specifies otherwise.

---

16. Read Hole Patterns

Bolt-Hole Example

Suppose a drawing shows four holes around a rectangular pattern.

You may see:

• Hole diameter
• Basic dimensions locating the holes
• Position tolerance
• Datum references

For example:

Ø10

and:

⌖ | ⌀0.20 | A | B | C

The correct interpretation requires considering:

1. Hole size
2. Theoretically exact location
3. Datum reference frame
4. Positional tolerance zone
5. Any material-condition modifier

---

17. Understand Pattern Requirements

Sometimes a GD&T requirement applies to a pattern of features rather than one feature independently.

For example:

Four holes may share one positional requirement.

This means you should determine whether the Feature Control Frame applies to:

• Each hole individually
• The entire pattern
• A common relationship among features

Pattern interpretation is particularly important in:

• Bolt circles
• Mounting holes
• Connector patterns
• Gear features
• Repeated slots

---

18. Check Profile Requirements

Profile is especially important when reading complex components.

A profile tolerance can control:

• Curved surfaces
• Irregular shapes
• Molded features
• Cast surfaces
• Aerodynamic surfaces
• CAD-defined geometry

A profile requirement should be interpreted together with:

• Basic dimensions
• Datum references
• Theoretically exact profile
• Tolerance value

---

19. Check Runout Requirements

For rotating components, look for:

Circular Runout

Controls variation at individual circular sections as the part rotates about a datum axis.

Total Runout

Controls variation over the entire indicated surface as the part rotates.

These are particularly relevant to:

• Shafts
• Rotors
• Wheels
• Bearing surfaces
• Rotating machine components

---

Conclusion

Reading a GD&T drawing is essentially the process of translating a two-dimensional engineering document into a three-dimensional functional requirement.

The correct approach is not to memorize every symbol independently. Instead, understand the relationship between:

Feature → Dimension → Datum → Feature Control Frame → Tolerance Zone → Inspection

Start by understanding the component and its function. Then read its dimensions and identify the datum features. Establish the datum reference frame, identify each Feature Control Frame, determine what feature it controls, and interpret the geometric tolerance, modifiers, and datum references.

Finally, determine how the actual manufactured feature will be measured and whether it satisfies the complete drawing requirement.

Simple Reading Formula

1. Identify the part
↓
2. Read dimensions
↓
3. Identify datums
↓
4. Read GD&T symbols
↓
5. Read Feature Control Frames
↓
6. Understand tolerance zones
↓
7. Apply datum references
↓
8. Check modifiers
↓
9. Inspect the feature
↓
10. Determine pass/fail

---
