Key Takeaways:

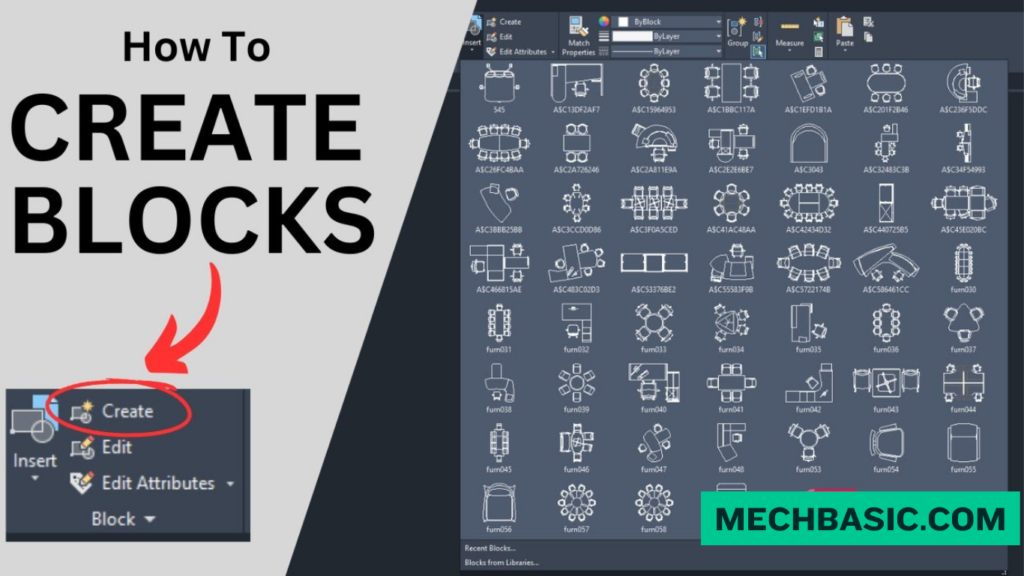

How to Create a Block in AutoCAD

What is a Block?

A Block is a group of objects combined into a single reusable object. Blocks are useful for frequently used elements such as doors, windows, symbols, furniture, electrical symbols, and title blocks.

Steps to Create a Block

1. Draw the Objects
Create the geometry you want to convert into a block.

2. Start the Block Command
Type BLOCK or B → press Enter.

3. Name the Block
Enter a suitable name, such as DOOR_900 or BOLT.

4. Select a Base Point
Click Pick Point and select the point that will be used when inserting the block.

5. Select Objects
Click Select Objects, choose all the objects that should become part of the block, then press Enter.

6. Choose the Block Behavior
Select Retain, Convert to Block, or Delete the original objects as required.

7. Click OK
AutoCAD creates the block.

How to Insert the Block

Type INSERT → select the block → specify:

Insertion point
Scale
Rotation angle

Then click to place it in the drawing.

Key Takeaway

Draw Objects → BLOCK → Name → Base Point → Select Objects → OK → INSERT

Tip: Use a logical base point—for example, use the door hinge point for a door block—so positioning the block becomes much easier.

How to Create a Block in AutoCAD

AutoCAD Blocks are reusable groups of objects that are combined into a single named object. Blocks are extremely useful when the same drawing element needs to be used repeatedly.

For example, an architectural drawing may contain hundreds of doors, windows, furniture symbols, or electrical fixtures. Instead of drawing each object separately, you can create it once as a Block and insert it wherever needed.

Using blocks helps improve drawing consistency, productivity, file organization, and editing efficiency.

What is a Block?

An AutoCAD Block is a collection of drawing objects combined and saved under a specific name.

A block can contain:

Lines
Polylines
Circles
Arcs
Text
Hatches
Dimensions
Attributes

Once created, the objects behave as a single block reference when inserted into a drawing.

Common Block Examples

Doors
Windows
Furniture
Light fixtures
Electrical symbols
Vehicles
Trees
Mechanical components
Structural symbols
Plumbing fixtures

Steps to Create a Block

Creating a block in AutoCAD involves selecting the objects, defining a base point, and assigning a name.

Step 1: Create the Objects

First, draw the geometry that you want to convert into a block.

Example

To create a simple door block, you could draw:

Door frame
Door leaf
Door swing arc

Step 2: Select the Objects

Select all the objects that should become part of the block.

Make sure you select every required object.

Step 3: Start the Block Command

Type:

BLOCK

in the command line and press Enter.

You can also use the Block tool from the Insert or Block-related tools in the AutoCAD interface.

The Block Definition dialog box will appear.

Step 4: Enter a Block Name

Enter a descriptive name for your block.

For example:

DOOR_SINGLE

Other examples could be:

WINDOW_1200
OFFICE_CHAIR
LIGHT_FIXTURE
TABLE_4_SEAT
VALVE_GATE

Use meaningful names so that blocks can be easily identified later.

Step 5: Specify the Base Point

Click Pick Point and select the point that will be used as the block’s insertion point.

This is an important step.

Example

For a door, you might select the bottom corner of the door frame as the base point.

When the block is inserted later, this point controls where the block attaches to the cursor or insertion location.

Step 6: Select the Objects

Click Select Objects and select the geometry that you want to include in the block.

Press Enter after making your selection.

Step 7: Review Block Settings

Check the available options before creating the block.

Depending on your workflow, you may need to consider options such as:

Retaining the original objects
Converting the selected objects into the block
Deleting the original objects

For most basic workflows, retaining the original geometry is useful if you want to continue working with it separately.

Step 8: Create the Block

Click:

Your selected objects are now defined as a block.

If you selected the option to convert the original objects into a block, they will now behave as a single block reference.

How to Insert the Block

Once a block has been created, you can insert it multiple times.

Step 1: Start the Insert Command

Type:

INSERT

and press Enter.

You can also use the Insert tool from the AutoCAD interface.

Step 2: Select the Block

Choose the block you created.

For example:

DOOR_SINGLE

Step 3: Specify the Insertion Point

Click the location where you want to place the block.

The block will be inserted using the base point you defined when creating it.

Step 4: Set the Scale

You can specify the:

X scale
Y scale
Z scale

For a standard block, use:

1, 1, 1

This inserts the block at its original size.

Step 5: Set the Rotation

Specify the rotation angle.

For example:

0° – Normal orientation
90° – Rotated 90 degrees
180° – Rotated 180 degrees
270° – Rotated 270 degrees

Example: Creating a Door Block

Let’s create a simple architectural door block.

Step 1

Draw a door using:

Lines for the frame
A line for the door panel
An arc for the door swing

Step 2

Select all three elements.

Step 3

Type:

BLOCK

Step 4

Enter the block name:

DOOR_SINGLE

Step 5

Choose the bottom corner of the door frame as the base point.

Step 6

Select the door geometry.

Step 7

Click OK.

The door is now a reusable block.

Step 8

Use:

INSERT

to place the door in multiple locations.

You can then rotate or scale individual block references as required.

Why Use Blocks?

1. Saves Time

Create an object once and reuse it many times.

2. Improves Consistency

Every inserted block uses the same basic geometry.

3. Simplifies Editing

If you need to update the definition of a block, all references can reflect the updated definition.

4. Reduces Repetitive Drawing

You don’t need to redraw the same symbol repeatedly.

5. Improves Drawing Organization

Blocks make drawings easier to manage and standardize.

Block vs Individual Objects

Feature	Individual Objects	Block
Reusable	Limited	✅
Single insertion object	❌	✅
Consistent geometry	Manual	✅
Easy repeated placement	❌	✅
Supports attributes	❌	✅
Suitable for symbols	Good	⭐ Excellent

Tips for Creating Better Blocks

Autodesk Learn: Block Creation in AutoCAD: Official video and step-by-step tutorial on converting drawn geometry into reusable block definitions, specifying base points, and setting annotative behaviors.

1. Choose a Logical Base Point

Place the insertion point where the block will naturally connect to other geometry.

2. Use Descriptive Names

Instead of:

BLOCK1

use:

DOOR_SINGLE_900

This makes the block easier to identify.

3. Keep Blocks Simple

Avoid unnecessary geometry that increases drawing complexity.

4. Use Layers Carefully

Consider how the block’s layers should behave when it is inserted into different drawings.

5. Use Attributes When Necessary

For blocks such as equipment tags, title blocks, or electrical symbols, attributes can store editable information such as:

Part number
Equipment ID
Manufacturer
Description
Drawing number

Frequently Asked Questions (FAQs)

1. What command is used to create a block in AutoCAD?

Use the:

BLOCK

command.

2. What command is used to insert a block?

Use:

INSERT

to place a previously created block into the drawing.

3. Can I edit an AutoCAD block?

Yes. Block definitions can be modified using AutoCAD’s block-editing tools.

4. Can I use the same block multiple times?

Yes. A block can be inserted many times throughout a drawing.

5. What is the most important part of creating a block?

Choosing the correct base point is particularly important because it determines how the block is positioned when inserted.

6. Can a block contain text?

Yes. Blocks can contain text, and attribute definitions can be used when the text needs to be editable for each individual block reference.

Conclusion

Creating a block in AutoCAD is one of the most useful techniques for improving CAD productivity.

Quick Workflow

Draw Objects → Select Objects → BLOCK → Enter Name → Pick Base Point → Select Objects → OK → INSERT

Blocks are especially useful for repetitive elements such as doors, windows, furniture, electrical symbols, mechanical components, and equipment.

By creating a well-organized block library, you can save drafting time, maintain consistency, simplify drawing management, and improve overall CAD productivity.
