You can customize the AutoCAD user interface by modifying the Ribbon, toolbars, and Quick Access Toolbar.
The CUI (Customize User Interface) command is used to create and manage custom settings.
Customization helps improve productivity and match individual workflow requirements.

---

---

How to Customize the User Interface in AutoCAD

Introduction

AutoCAD allows users to customize the user interface (UI) to improve productivity, reduce repetitive work, and create a workspace that matches specific job requirements.

You can customize:

• Ribbon tabs and panels
• Toolbars
• Quick Access Toolbar (QAT)
• Workspaces
• Keyboard shortcuts
• Command aliases
• Status bar settings
• Colors and themes
• Menus and palettes

Customization is especially useful for professionals who use AutoCAD daily.

---

Why Customize the AutoCAD Interface?

Benefits include:

✔ Faster access to frequently used commands
✔ Reduced mouse clicks
✔ Improved workflow efficiency
✔ Personalized workspace
✔ Better organization of tools

---

1. Customizing the Quick Access Toolbar (QAT)

The Quick Access Toolbar is located at the top of the AutoCAD window.

Purpose

Provides one-click access to frequently used commands.

Common Commands Added

• Save
• Open
• Undo
• Redo
• Plot
• Layer Properties

---

How to Customize

Method 1

1. Click the drop-down arrow on the Quick Access Toolbar.
2. Select commands to show or hide.

Method 2

1. Right-click a command in the Ribbon.
2. Choose:
   Add to Quick Access Toolbar

---

Example

If you frequently use “Layer Properties,” add it to the QAT for faster access.

---

2. Customizing the Ribbon

The Ribbon contains tabs such as:

• Home
• Insert
• Annotate
• View
• Output

---

What Can Be Customized?

Add Tabs

Create custom tabs containing your favorite commands.

Add Panels

Create custom panels for specific tasks.

Rearrange Commands

Move commands into more convenient locations.

---

Using the CUI Command

Type:

CUI

and press Enter.

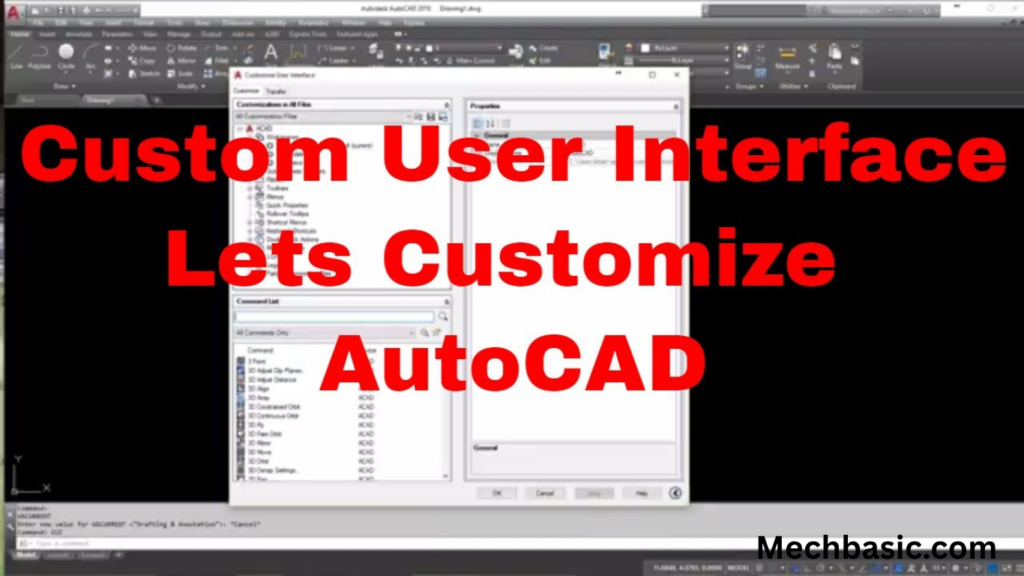

This opens the Customize User Interface Editor.

---

Example

Create a custom “Mechanical Design” tab containing:

• Line
• Circle
• Offset
• Trim
• Dimension

All in one place.

---

3. Creating Custom Toolbars

Toolbars provide quick access to commands.

---

How to Create

1. Type:

CUI

2. Open the Toolbar section.
3. Create a new toolbar.
4. Add commands.

---

Example Toolbar

“Production Tools”

Contains:

• Save
• Plot
• Layer Manager
• Dimension
• Properties

---

4. Customizing Workspaces

A workspace controls which interface elements are displayed.

---

Common Workspaces

Drafting & Annotation

For 2D drawings.

3D Modeling

For 3D design.

---

Create a Custom Workspace

Steps

1. Arrange toolbars and panels.
2. Open Workspace Switching.
3. Select:
   Save Current As
4. Enter workspace name.

Example:

Mechanical Design Workspace

---

Benefits

AutoCAD remembers your preferred layout.

---

5. Customizing Keyboard Shortcuts

Keyboard shortcuts improve speed.

---

Examples

Command	Shortcut
Line	L
Circle	C
Move	M
Copy	CO
Trim	TR

---

Modify Shortcuts

Type:

ALIASEDIT

or edit:

acad.pgp

file.

---

Example

Create:

BR = BREAK

Now typing BR executes the Break command.

---

6. Creating Command Aliases

Command aliases are custom abbreviations.

---

Example

Instead of typing:

DIMLINEAR

Create alias:

DL

Now:

DL

runs the command instantly.

---

7. Customizing the Status Bar

The Status Bar contains drafting aids.

---

Options

Enable or disable:

• Grid
• Snap
• Ortho
• Polar Tracking
• Object Snap
• Dynamic Input

---

Example

Mechanical drafters often keep:

✔ OSNAP ON
✔ ORTHO ON
✔ Dynamic Input ON

---

8. Customizing Tool Palettes

Tool Palettes store reusable content.

---

Can Store

• Blocks
• Hatches
• Commands

---

Open Tool Palette

Press:

CTRL + 3

---

Example

Create a palette containing:

• Bolts
• Nuts
• Bearings
• Symbols

Then drag and drop into drawings.

---

9. Customizing Colors and Themes

AutoCAD supports different appearance settings.

---

Access

Type:

OPTIONS

Select:

Display Tab

---

Change

• Background color
• Crosshair color
• Interface theme

---

Popular Choice

Dark background because:

• Easier on the eyes
• Better visibility

---

10. Customizing Crosshair Size

Crosshairs help position the cursor.

---

Steps

1. Type:

OPTIONS

2. Select Display.
3. Adjust Crosshair Size slider.

---

Typical Setting

80%–100% for precision drafting.

---

11. Customizing Right-Click Menus

AutoCAD allows custom context menus.

---

Benefits

Quick access to frequently used commands.

---

Example

Right-click menu can include:

• Copy
• Move
• Rotate
• Properties

---

12. Using the CUI (Customize User Interface) Editor

The CUI Editor is the main customization tool.

---

Open

Type:

CUI

---

Functions

• Create ribbon tabs
• Create panels
• Create toolbars
• Modify menus
• Assign shortcuts

---

Example

Create a custom tab called:

Manufacturing Tools

Containing:

• Layer Manager
• Offset
• Trim
• Dimension
• Plot

---

Recommended Customization for Beginners

Quick Access Toolbar

Add:

• Save
• Undo
• Redo
• Layer Properties

---

Status Bar

Enable:

• OSNAP
• ORTHO
• Polar Tracking

---

Workspace

Use:

• Drafting & Annotation

---

Theme

Use:

• Dark Theme

---

Recommended Customization for Mechanical Designers

Create a custom toolbar with:

• Line
• Circle
• Offset
• Trim
• Extend
• Dimension
• Layer Manager
• Properties

This covers most daily drafting tasks.

---

Advantages of Customizing AutoCAD

✔ Faster drafting
✔ Reduced repetitive actions
✔ Easier navigation
✔ Better organization
✔ Increased productivity
✔ More comfortable working environment

---

Conclusion

AutoCAD’s user interface can be customized extensively through the Quick Access Toolbar, Ribbon, Toolbars, Workspaces, Keyboard Shortcuts, Tool Palettes, and the CUI Editor. Proper customization helps users access frequently used commands faster, reduces repetitive work, and significantly improves drafting efficiency. For beginners, simple customizations such as adding favorite commands to the Quick Access Toolbar, enabling drafting aids, and creating a personalized workspace can greatly improve the learning experience and daily productivity.

---
