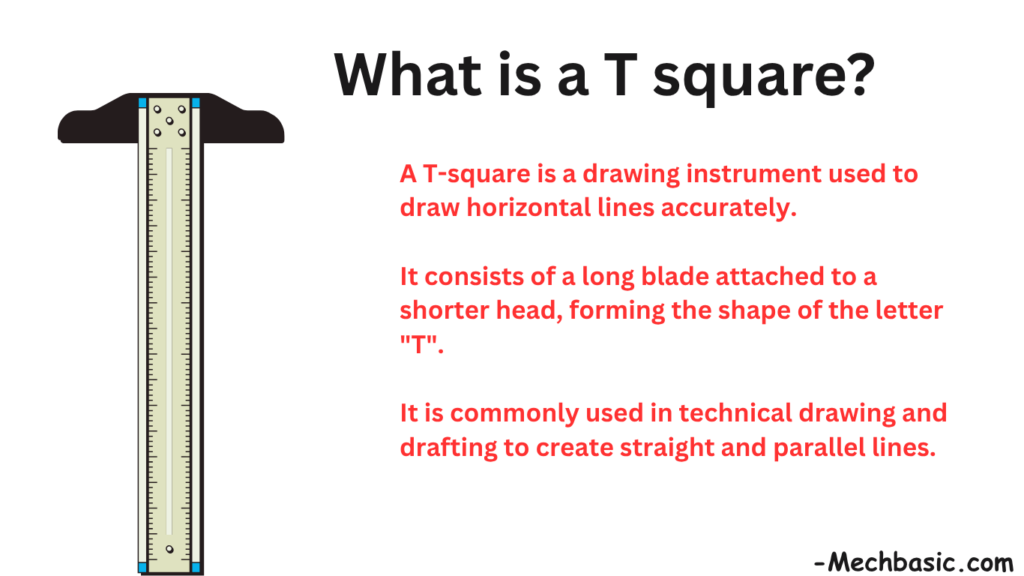

A T-square is a drafting tool used to draw horizontal lines and guide other drawing instruments.
It consists of a long straight blade attached to a perpendicular head, forming a “T” shape.
T-squares are commonly used in engineering drawing and technical drafting.

---

---

T-Square (Drawing Instrument)

What is a T-Square?

A T-square is a drafting instrument used to draw horizontal lines, guide vertical and inclined lines with set squares, and provide a reference edge for technical drawings.

It gets its name from its shape, which resembles the letter “T”.

Before CAD software became common, the T-square was one of the most important tools used in engineering drawing, architecture, and drafting.

---

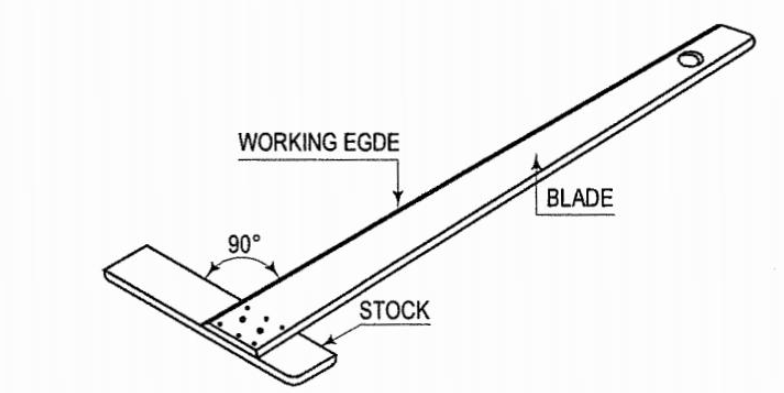

Structure of a T-Square

A T-square consists of two main parts:

1. Blade

• Long straight section.
• Used as the drawing edge.
• Slides across the drawing board.

Features

• Straight and smooth
• May be made of wood, plastic, or aluminum
• Often contains measurement markings

---

2. Head (Stock)

• Short section attached at a right angle to the blade.
• Rests against the edge of the drawing board.

Function

• Maintains a constant 90° relationship.
• Ensures horizontal lines are truly horizontal.

---

Principle of Operation

The head of the T-square is placed against the edge of the drawing board.

As the instrument slides up and down:

• The blade remains parallel to the bottom edge.
• Accurate horizontal lines can be drawn.

---

Types of T-Squares

1. Fixed Head T-Square

Features

• Head permanently fixed at 90°.
• Most common type.

Advantages

• Strong
• Accurate
• Easy to use

---

2. Adjustable Head T-Square

Features

• Head angle can be adjusted.

Applications

• Special drafting requirements
• Angular layouts

---

3. Wooden T-Square

Features

• Traditional drafting instrument.
• Usually made from hardwood.

Advantages

• Durable
• Stable

---

4. Plastic T-Square

Features

• Lightweight
• Transparent

Advantages

• Easy to handle
• Low cost

---

5. Metal T-Square

Features

• Aluminum or steel construction.

Advantages

• High accuracy
• Long life

---

Functions of a T-Square

1. Drawing Horizontal Lines

This is the primary function.

Example

Drawing:

• Reference lines
• Borders
• Construction lines

---

2. Guiding Set Squares

A set square is placed against the blade.

This allows drawing:

• Vertical lines
• Inclined lines

---

3. Drawing Parallel Lines

The T-square can be moved up or down while remaining parallel.

Result

Multiple parallel lines can be drawn accurately.

---

4. Aligning Drawings

Helps position and align drawing elements.

---

5. Checking Straightness

Can be used as a straightedge.

---

How to Use a T-Square

Step 1

Place the head firmly against the left edge of the drawing board.

Step 2

Slide the T-square to the desired position.

Step 3

Hold it securely.

Step 4

Draw along the blade edge.

Step 5

Move to another location if additional lines are needed.

---

Using a T-Square with Set Squares

This combination is extremely common in engineering drawing.

Procedure

1. Position the T-square.
2. Place a set square against the blade.
3. Draw vertical or angled lines.

---

Common Angles

45° Set Square

Used for:

• 45°
• 90°

angles

---

30°–60° Set Square

Used for:

• 30°
• 60°
• 90°

angles

---

Applications in Engineering Drawing

Mechanical Engineering

Used for:

• Orthographic projections
• Construction lines
• Layout work

Civil Engineering

Used for:

• Site plans
• Structural layouts

Architecture

Used for:

• Floor plans
• Building elevations
• Sections

---

Advantages of a T-Square

High Accuracy

Produces straight horizontal lines.

Easy to Use

Simple operation.

Fast Drafting

Allows quick creation of parallel lines.

Supports Other Instruments

Works with:

• Set squares
• Protractors
• Scales

---

Limitations

Requires a Drawing Board

Cannot be used effectively without one.

Limited Angle Creation

Primarily designed for horizontal lines.

Large Size

Can be cumbersome to transport.

---

Materials Used

Wood

Traditional and durable.

Plastic

Lightweight and transparent.

Aluminum

Strong and precise.

---

Care and Maintenance

Keep Edges Straight

Avoid bending or warping.

Store Flat

Prevents distortion.

Keep Clean

Dust can affect accuracy.

Avoid Dropping

May damage alignment.

---

T-Square vs Set Square

Feature	T-Square	Set Square
Main Purpose	Horizontal lines	Vertical and inclined lines
Shape	T-shaped	Triangular
Used Alone	Yes	Usually with T-square
Draw Angles	Limited	Yes

---

T-Square vs Scale

Feature	T-Square	Scale
Draw Straight Lines	Yes	No
Measure Length	Limited	Yes
Drafting Aid	Yes	No

---

T-Square vs Parallel Bar

Feature	T-Square	Parallel Bar
Movement	Slides manually	Moves on cables
Accuracy	Good	Very high
Modern Usage	Less common	More common in professional boards

---

Importance Before CAD

Before software such as AutoCAD became widespread, engineers and architects relied heavily on:

• T-squares
• Set squares
• Compasses
• Protractors
• Scales

to create technical drawings.

Although digital drafting has replaced much manual drawing, understanding the T-square remains important in engineering graphics education.

---

Advantages in Engineering Education

Learning with a T-square helps students understand:

• Projection principles
• Drawing accuracy
• Geometric construction
• Drafting fundamentals

These concepts remain useful even when using CAD software.

---

Conclusion

A T-square is a fundamental drafting instrument used primarily for drawing horizontal lines and guiding set squares for vertical and angled lines. It consists of a blade and a head fixed at right angles, allowing accurate and efficient technical drawing. Although modern CAD software has largely replaced manual drafting, the T-square remains an important educational tool for understanding engineering drawing principles, geometric construction, and traditional drafting techniques.

---
