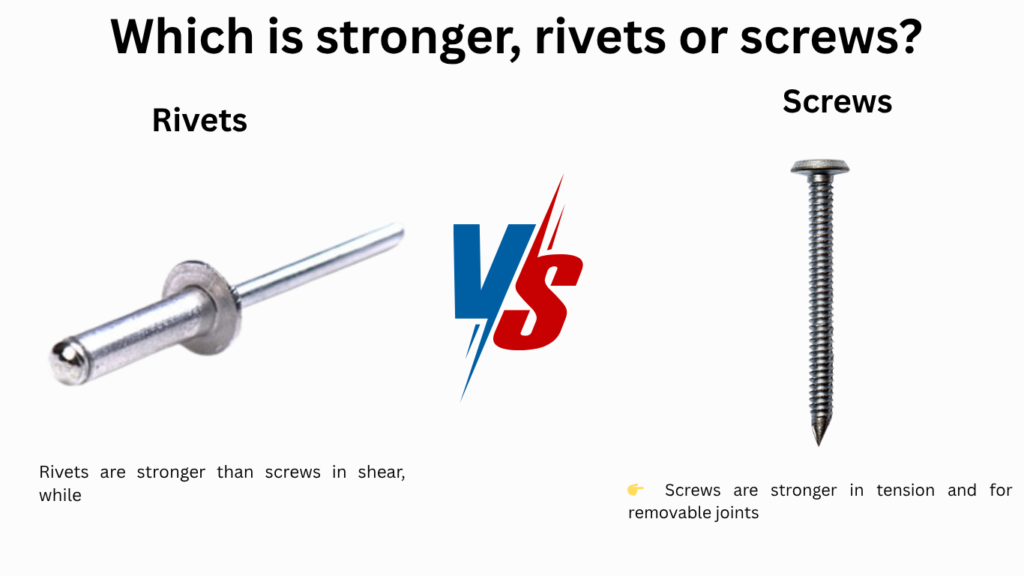

Which is stronger, rivets or screws?

Rivets are generally stronger than screws in permanent joints.
They distribute load more evenly and resist vibration better.
Screws are easier to remove but may loosen under repeated stress.

Which is stronger, rivets or screws?


👉 Rivets are stronger than screws in shear, while
👉 Screws are stronger in tension and for removable joints


Rivets vs Screws — Strength Comparison

1. Strength in Shear (Sideways Force)

Rivets — Stronger

  • Designed to resist shear loads (forces acting parallel to the joint)
  • Solid shank provides continuous material
  • No threads → no weak points

👉 Common in:

  • Bridges
  • Aircraft structures
  • Steel frameworks

Screws — Weaker in Shear

  • Threads reduce the effective cross-sectional area
  • More likely to shear off under heavy lateral loads

Winner in shear: Rivets


2. Strength in Tension (Pulling Force)

Screws — Stronger

  • Threads grip materials tightly
  • Can resist pull-out forces effectively
  • Can be tightened to increase clamping force

Rivets — Weaker in Tension

  • Not designed to resist pulling forces
  • Can fail by:
    • Pulling out
    • Head breaking

Winner in tension: Screws


3. Joint Tightness & Reliability

Rivets

  • Permanent joint
  • Do not loosen under vibration
  • Very reliable over time

Screws

  • Can loosen due to vibration
  • May require locking mechanisms (nuts, washers)

Winner: Rivets


4. Reusability

Screws — Better

  • Can be removed and reused

Rivets — Not reusable

  • Must be destroyed to remove

5. Installation

Screws

  • Easy to install and remove
  • Require simple tools

Rivets

  • Require special tools or access to both sides

Overall Comparison

PropertyRivets 🔩Screws 🔧
Shear Strength⭐⭐⭐⭐⭐ (High)⭐⭐⭐ (Moderate)
Tensile Strength⭐⭐ (Lower)⭐⭐⭐⭐ (High)
VibrationExcellent resistanceMay loosen
PermanencePermanentRemovable
InstallationMore complexEasy

Summary

👉 Rivets are stronger for structural joints under shear loads
👉 Screws are stronger for joints under tensile loads and where disassembly is needed

  • Aircraft use rivets because loads are mostly shear + vibration
  • Machines and furniture use screws because parts need to be adjusted or replaced

Conclusion

  • Rivets = Shear + Permanent + Strong joints
  • Screws = Tension + Adjustable + Flexible use
