DMLS vs EBM (Electron Beam Melting):
- DMLS uses a laser, while EBM uses an electron beam to melt metal powder.
- DMLS works in inert gas; EBM operates in a vacuum environment.
- DMLS gives finer detail; EBM is faster and better for larger, dense parts.
In this article:
What is the difference between DMLS and EBM?

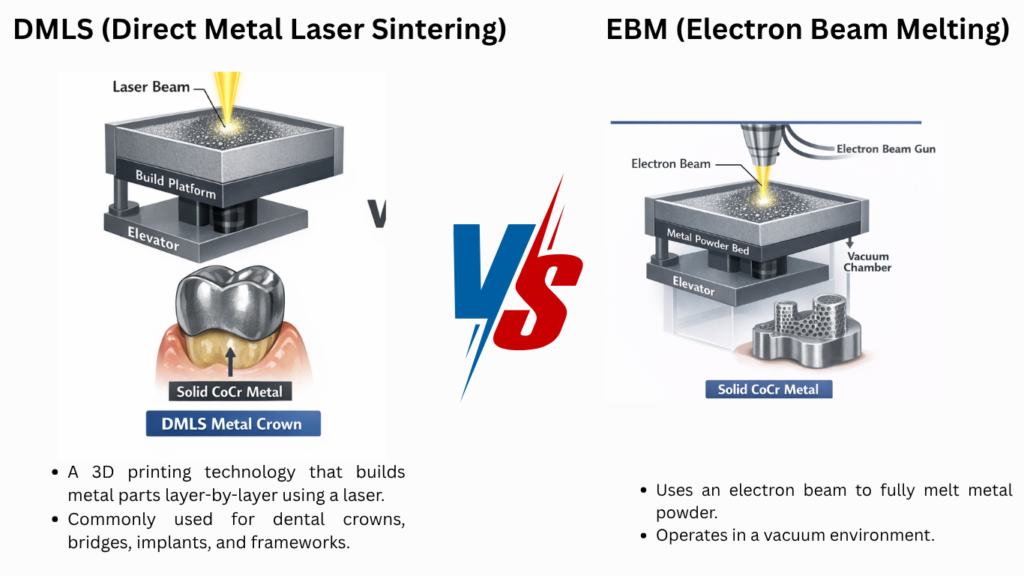

DMLS (Direct Metal Laser Sintering) and EBM (Electron Beam Melting) are both metal 3D printing technologies, but they differ significantly in energy source, process environment, materials, and outcomes. Here’s a clear, detailed comparison:
Basic Definition
DMLS (Direct Metal Laser Sintering)
- Uses a laser beam to fuse metal powder layer by layer.
- Operates in an inert gas atmosphere (argon or nitrogen).
EBM (Electron Beam Melting)
- Uses an electron beam to fully melt metal powder.
- Operates in a vacuum environment.
1. Energy Source
DMLS
- High-powered laser (light energy).
- Controlled via mirrors.
EBM
- Electron beam (charged particles).
- Controlled by electromagnetic fields.
✅ Key Difference:
Laser vs Electron Beam
2. Process Temperature
DMLS
- Lower overall build temperature.
- Powder bed not fully preheated.
EBM
- Very high temperature.
- Entire powder bed is preheated before melting.
✅ Result:
EBM has less thermal stress.
3. Build Environment
DMLS
- Works in inert gas (argon/nitrogen).
EBM
- Works in a vacuum chamber.
✅ Why important?
- Vacuum prevents electron scattering.
- Improves purity in EBM.
4. Material Fusion
DMLS
- Often described as sintering (partial melting + fusion).
- Some porosity may remain.
EBM
- Full melting of powder.
- Produces denser parts.
✅ Better Density: EBM
5. Materials Used
DMLS
- Wide range:
- Stainless steel
- Titanium
- Aluminum
- Cobalt-chromium
- Nickel alloys
EBM
- Limited materials:
- Mainly titanium alloys
- Cobalt-chromium
✅ More versatile: DMLS
6. Accuracy & Surface Finish
DMLS
- Higher precision
- Better surface finish
EBM
- Lower resolution
- Rougher surface
✅ Better finish: DMLS
7. Build Speed
DMLS
- Slower (point-by-point laser scanning)
EBM
- Faster (electron beam scans rapidly and preheats)
✅ Faster: EBM
8. Residual Stress
DMLS
- Higher residual stresses
- May require stress-relief heat treatment
EBM
- Lower residual stress due to high preheating
✅ Better: EBM
9. Support Structures
DMLS
- Requires more supports (to prevent warping)
EBM
- Requires fewer supports (due to uniform heating)
10. Cost
DMLS
- Widely available → relatively lower cost
EBM
- Expensive machines and maintenance
11. Powder Handling
DMLS
- Fine powder → higher risk (inhalation, explosion)
EBM
- Coarser powder → safer and easier to handle
Summary Table
| Feature | DMLS | EBM |
|---|---|---|
| Energy Source | Laser | Electron beam |
| Environment | Inert gas | Vacuum |
| Temperature | Lower | Very high |
| Material Fusion | Partial melting | Full melting |
| Accuracy | High | Moderate |
| Surface Finish | Smooth | Rough |
| Speed | Slower | Faster |
| Residual Stress | High | Low |
| Materials | Wide range | Limited |
| Cost | Moderate | High |
Conclusion:
Choose DMLS when you need:
- High precision
- Smooth surface finish
- Complex geometries
- Variety of materials
Choose EBM when you need:
- High strength & density
- Low residual stress
- Faster production
- Titanium-based implants
- DMLS = Precision + Versatility
- EBM = Strength + Speed
