FDM (Fused Deposition Modeling) is an additive manufacturing process where a thermoplastic filament is melted and deposited layer by layer.
The material is extruded through a heated nozzle to build parts from a digital design.
It is widely used for prototyping due to its low cost and ease of use.
In this article:

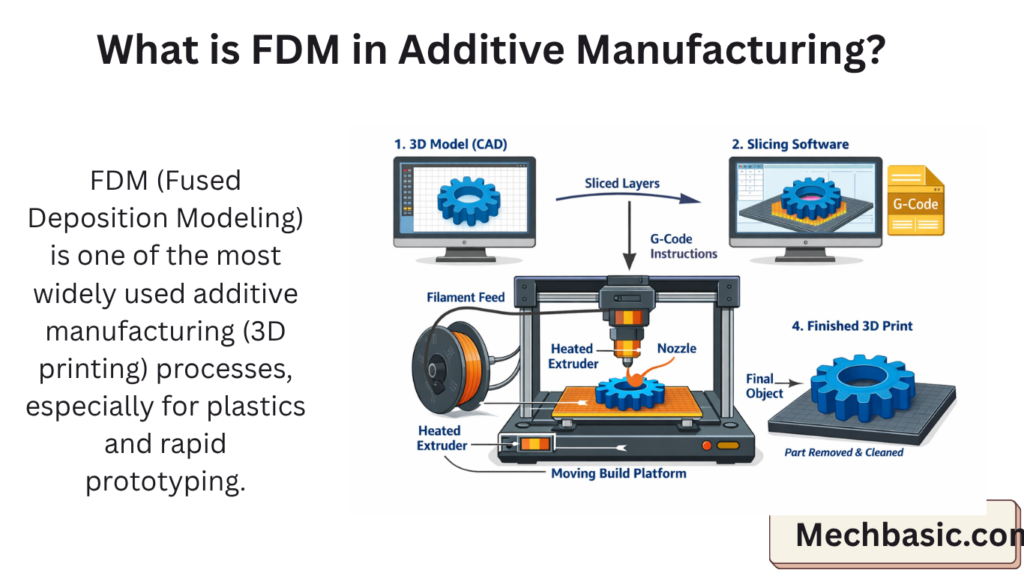

What is FDM in Additive Manufacturing?
FDM (Fused Deposition Modeling) is one of the most widely used additive manufacturing (3D printing) processes, especially for plastics and rapid prototyping.
👉 It is a material extrusion-based process where a thermoplastic filament is melted and deposited layer by layer to build a 3D object.
Definition
👉 Fused Deposition Modeling (FDM) is an additive manufacturing process in which a thermoplastic filament is heated and extruded through a nozzle to build a part layer by layer from a digital model.
Working Principle of FDM
FDM works on a simple principle:
👉 heat → melt → extrude → solidify (layer by layer)
Step-by-Step Process
1. CAD Model Creation
- A 3D model is designed using CAD software
(e.g., SolidWorks, Fusion 360)
2. Slicing
- Model is divided into thin layers
- Toolpath (G-code) is generated
3. Filament Feeding
- Plastic filament is fed into the printer
- Usually in spool form
4.Melting in Nozzle
- Filament is heated in an extruder
- Becomes semi-liquid
5. Layer Deposition
- Melted material is deposited on build platform
- Each layer follows the sliced path
6. Solidification
- Material cools and hardens immediately
- Layers bond together
7. Post Processing
- Support removal
- Sanding or polishing
Materials Used in FDM
Common thermoplastics
- PLA (most common)
- ABS
- PETG
- Nylon
Advanced materials
- Carbon fiber reinforced plastics
- Glass-filled polymers
Components of FDM Printer
- Filament spool
- Extruder (motor + heater)
- Nozzle
- Heated build bed
- X-Y-Z motion system
Advantages of FDM
1. Low Cost
- Cheapest 3D printing technology
2. Easy to Use
- Simple setup and operation
3. Material Availability
- Wide range of plastics available
4. Fast Prototyping
- Quick design testing
5. Minimal Waste
- Only required material is used
Disadvantages of FDM
1. Lower Strength
- Weak bonding between layers
2. Poor Surface Finish
- Visible layer lines
3. Limited Accuracy
- Less precise than SLA/SLS
4. Slow for Large Parts
- Layer-by-layer process takes time
5. Limited to Thermoplastics
- Cannot print metals directly
Applications of FDM
Education
- Learning models
Industry
- Prototypes
- Jigs and fixtures
Home Use
- Toys
- Household items
Automotive
- Design testing parts
FDM vs FFF
| Feature | FDM | FFF |
|---|---|---|
| Meaning | Trademark name | General term |
| Usage | Industrial | Open-source & general |
| Technology | Same | Same |
👉 FDM = official term
👉 FFF = general term
Summary:
👉 FDM is the simplest and most popular additive manufacturing method, mainly used for plastic prototyping and low-cost production.
Conclusion:
Fused Deposition Modeling (FDM) is an additive manufacturing process in which a thermoplastic filament is melted in a heated nozzle and deposited layer by layer to form a 3D object. It is widely used for prototyping due to its low cost and simplicity.
