What Does a Catalytic Converter Do?

Primary Function of catalytic converter:

The catalytic converter:

Reduces toxic emissions
Protects the environment
Helps the vehicle meet emission regulations

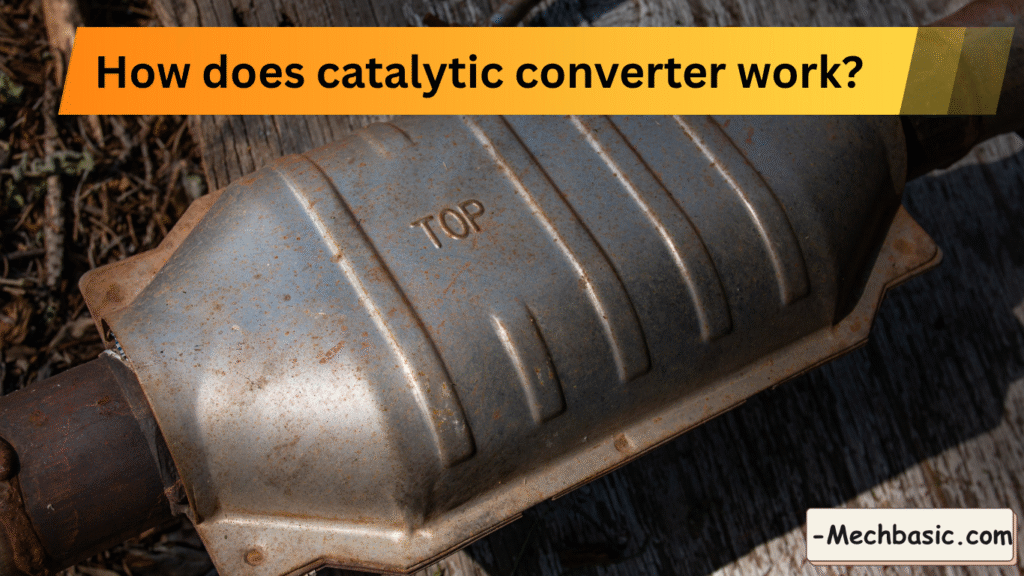

How does catalytic converter work?

The converter uses catalysts (usually precious metals) to speed up chemical reactions without being consumed. It processes three main harmful exhaust gases:

Step 1: Exhaust leaves the engine

Hot exhaust (~300–900 °C) carrying CO, unburned HC, NOx, CO₂, H₂O, and some O₂ flows into the converter.

Step 2: Flow through the honeycomb

Gas passes through a ceramic or metal honeycomb substrate (thousands of tiny channels) coated with a washcoat (high-surface-area alumina with ceria–zirconia and precious metals Pt, Pd, Rh).
The huge surface area lets lots of molecules touch the catalyst.

Step 3: “Light-off” (warming to activate)

As the brick heats up, reactions ramp sharply once it reaches light-off temperature (~250–300 °C for CO/HC; ~300–400 °C for NOx).
Below light-off, the catalyst does little; above it, conversion efficiency climbs rapidly.

Step 4: Closed-loop fueling keeps the mix just right

Upstream O₂ sensor tells the ECU how rich/lean the mixture is.
The ECU oscillates fueling around stoichiometric (λ ≈ 1, air–fuel ≈ 14.7:1 for gasoline).
This swing is crucial: the TWC needs alternating slightly rich and slightly lean conditions to handle all three pollutants.

Step 5: On the surface: adsorb → react → desorb

Inside each channel, molecules:

Diffuse from the gas to the washcoat surface.
Adsorb onto active sites of the precious metals.
React (see chemistry below).
Desorb as harmless products (mainly N₂, CO₂, H₂O) and diffuse back into the gas stream and out the tailpipe.

Step 6: The three core reactions (happen in parallel)

A) NOx reduction (favorite metal: Rhodium)

When the mix goes a bit rich, there’s not much O₂, so:
- 2 NO → N₂ + O₂ (net), but practically O atoms get “mopped up” by CO and H₂:
- 2 CO + 2 NO → 2 CO₂ + N₂
- 2 H₂ + 2 NO → 2 H₂O + N₂

B) CO oxidation (Pt/Pd)

When the mix swings lean (O₂ present), CO gets burned on the catalyst:
- 2 CO + O₂ → 2 CO₂

C) HC oxidation (Pt/Pd)

Unburned hydrocarbons oxidize to CO₂ and H₂O:
- CₓHᵧ + (x + y/4) O₂ → x CO₂ + (y/2) H₂O

Step 7: Oxygen buffering by ceria

The ceria–zirconia in the washcoat stores O₂ when lean and releases O when rich.
This oxygen “sponge” smooths the swings so oxidation and reduction both stay effective during rapid ECU cycling.

Step 8: Downstream monitoring

A downstream O₂ sensor checks converter efficiency. A steady signal (vs. the upstream sensor’s oscillation) implies the catalyst is working.

Harmful Gas	Source	Harmful Effect	Converted To
Carbon monoxide (CO)	Incomplete combustion of fuel	Poisonous, odorless gas	Carbon dioxide (CO₂)
Hydrocarbons (HC)	Unburnt fuel	Causes smog and health issues	Water (H₂O) and CO₂
Nitrogen oxides (NOx)	High engine temperatures	Causes smog, acid rain	Nitrogen (N₂) and Oxygen (O₂)

Key Parts of the Catalytic Converter:

Substrate:
- A ceramic or metallic honeycomb structure with a large surface area.
- Coated with a catalyst.
Catalyst Coating:
- Made of platinum (Pt), palladium (Pd), and rhodium (Rh).
- These metals facilitate the redox (oxidation-reduction) reactions.

Main Types of Reactions Inside Catalytic converter

🔄 Reduction Reaction (NOx → N₂ + O₂)
- Rhodium helps break down Nitrogen oxides (NOx) into:
  - Nitrogen (N₂) — safe to breathe
  - Oxygen (O₂)
🔥 Oxidation Reactions
- Platinum & Palladium catalyze:
  - Carbon monoxide (CO) → Carbon dioxide (CO₂)
  - Unburned hydrocarbons (HC) → Carbon dioxide (CO₂) and Water (H₂O)

Operating Conditions

Works best when hot (400–800°C or 752–1472°F).
Located close to the engine to heat up quickly.
Oxygen sensors before and after the converter help monitor efficiency.

Signs of a Failing Catalytic Converter

Reduced engine performance
Rotten egg smell (sulfur)
Check engine light
Poor fuel economy
Failed emissions test

Environmental Importance:

Without a catalytic converter, vehicles would emit up to 10 times more pollutants. This device has been key in reducing urban air pollution and meeting strict emissions standards worldwide.

Also Read: How Engine emission controlled by catalytic converter?

Also Read: 10 Types of catalytic converter you need to know

FAQ Section:

❓ 1. What is a catalytic converter?

It’s a part of the exhaust system that turns harmful engine gases into cleaner emissions before they leave your car’s tailpipe.

❓ 2. Why is it important?

It reduces air pollution by converting toxic gases (CO, NOₓ, hydrocarbons) into less harmful substances like CO₂, nitrogen, and water vapor.

❓ 3. How do I know if my catalytic converter is bad?

Common signs:

Check Engine Light is on
Poor fuel economy
Rotten egg smell (sulfur)
Loss of power
Rattling noise under the car

❓ 4. Can I drive without a catalytic converter?

Technically yes, but it’s illegal in many places and can cause:

Check Engine Light
Failed emissions tests
Fines and tickets
Environmental harm

❓ 5. How long does a catalytic converter last?

Usually 70,000 to 100,000 miles, but it can fail earlier due to engine problems or contamination.

❓ 6. What causes it to fail?

Running too rich (too much fuel)
Oil or coolant leaks
Unburned fuel from misfires
Physical damage or rust

❓ 7. Can I clean a catalytic converter?

Sometimes. You can try fuel additives or manual cleaning, but if it’s clogged or melted inside, it needs to be replaced.

❓ 8. Why are they stolen?

They contain precious metals like platinum, palladium, and rhodium, which are valuable and easy to resell.

❓ 9. How can I protect my catalytic converter from theft?

Park in secure areas
Install a cat shield or cage
Engrave your VIN on it
Use motion-sensitive alarms

❓ 10. How much does it cost to replace one?

$500 to $2,500 or more, depending on the car
Some high-end models (especially hybrids) are more expensive due to rare metals
