The spark plug is a critical component in the ignition system of a gasoline internal combustion engine. It creates the spark that ignites the air-fuel mixture in the combustion chamber, allowing the engine to generate power.
In this article:
1. What is a Spark Plug?
A spark plug is an electrical device threaded into the cylinder head of a petrol engine. Its job is to deliver an electric spark at the right time to ignite the compressed air-fuel mixture inside the combustion chamber.
Related articles:
- What is the difference between a spark plug and a heat range?
- Types of spark plug.
- When to replace spark plugs?
- 10 Signs of bad spark plug
- Spark plug replacement cost.
- How long do spark plug last?
- Do diesel engine have spark plugs?

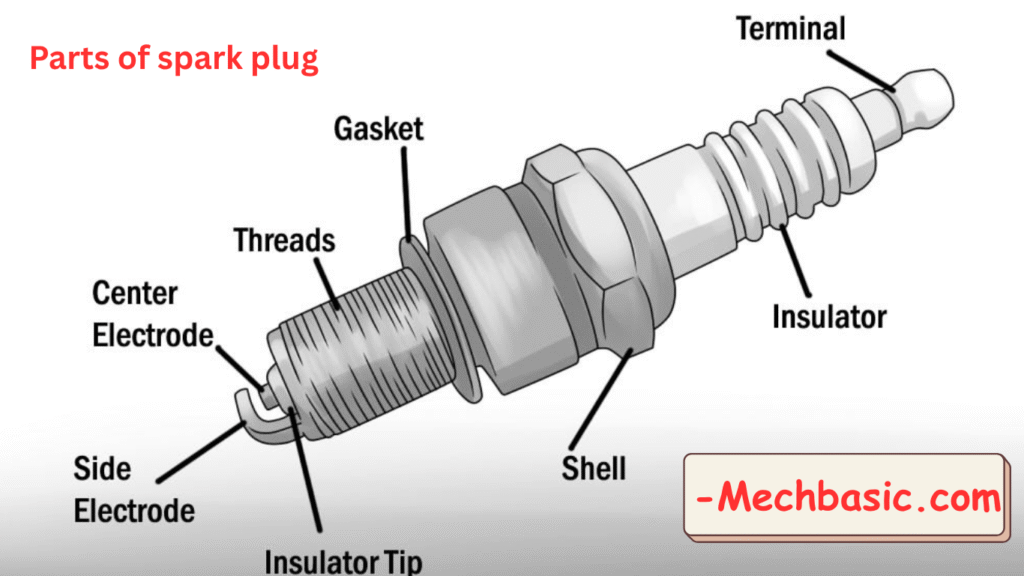

2. Parts of a Spark Plug:
| Component | Description |
|---|---|
| Terminal | Top end that connects to the ignition coil or distributor wire. |
| Insulator | Made of ceramic; electrically isolates the center electrode from the body. |
| Metal Shell | Threads into the cylinder head and conducts heat away. Also grounds the spark. |
| Gasket or Washer | Seals the combustion chamber gases. |
| Center Electrode | Carries high voltage from the ignition system to the gap. |
| Ground Electrode (Side Electrode) | Attached to the threaded metal shell and creates a gap with the center electrode. |
| Spark Gap | The space between the center and ground electrodes where the spark jumps. |
3. How It Works:
- Voltage (typically 12,000 to 45,000 volts) is supplied by the ignition coil.
- The voltage travels down the center electrode.
- It jumps across the spark gap to the ground electrode, forming a spark.
- This ignites the compressed air-fuel mixture in the combustion chamber.
- The explosion pushes the piston down, generating power.
Timing is critical: the spark must occur just before the piston reaches top dead center (TDC) of the compression stroke.
4. Spark Plug Heat Range:
- Refers to the plug’s ability to dissipate heat from the tip to the engine head.
- “Hot” plug: dissipates heat slowly – better for short trips or low-speed engines.
- “Cold” plug: dissipates heat quickly – used in high-performance or high-speed engines.
Choosing the wrong heat range can cause fouling (too cold) or pre-ignition/knocking (too hot).
5. Types of Spark Plugs (by Material)
| Type | Features |
|---|---|
| Copper Core | Good conductor, low cost, short lifespan. |
| Platinum | Longer life, better heat resistance. |
| Double Platinum | Both electrodes are platinum; more durable. |
| Iridium | Longest lifespan, best performance, high cost. |
| Multi-Ground or Surface Gap | Improved spark exposure or reliability. |
6. Common Spark Plug Problems
- Fouling – oil, carbon, or fuel deposits cause misfiring.
- Worn electrodes – wider gap reduces spark efficiency.
- Cracked insulator – causes misfiring or no spark.
- Improper gap – too wide or too narrow affects ignition.
- Heat damage – melted tips from pre-ignition.
7. Maintenance and Replacement
- Typical lifespan:
- Copper: 20,000–30,000 km
- Platinum: 80,000–100,000 km
- Iridium: 100,000+ km
- Check/replace when:
- Engine misfires or runs rough.
- Poor fuel economy.
- Trouble starting.
- Check engine light (often due to misfire code).
- Gap setting:
- Check with a feeler gauge.
- Follow the manufacturer’s specification (usually 0.6–1.1 mm).
8. Advantages of Good Spark Plug Function:
- Smooth engine performance.
- Better fuel efficiency.
- Lower emissions.
- Easier cold starts.
- More power and throttle response.
Conclusion:
A spark plug is essential for igniting the air-fuel mixture in a gasoline engine. It ensures smooth engine performance, efficient fuel use, and reduced emissions. Regular inspection and proper maintenance are key to preventing misfires and maintaining engine health.
For further reference check, spark plug in wikipedia.
FAQ Section:
1. What is the purpose of a spark plug?
A spark plug ignites the air-fuel mixture inside the combustion chamber of a gasoline engine, starting the combustion process that powers the engine.
2. How often should I replace spark plugs?
It depends on the type:
- Copper: ~20,000–30,000 km
- Platinum: ~80,000–100,000 km
- Iridium: ~100,000+ km
Always check your vehicle’s manual.
3. What are the symptoms of bad spark plugs?
- Engine misfires
- Poor fuel economy
- Hard starting
- Rough idling
- Check engine light
4. What’s the difference between copper, platinum, and iridium spark plugs?
- Copper: Cheapest, short life
- Platinum: Longer life, good performance
- Iridium: Longest life, best performance, more expensive
5. What is a spark plug heat range?
It describes how quickly a spark plug can transfer heat from the tip.
- Hot plug: Slower heat dissipation
- Cold plug: Faster heat dissipation
Match it to engine type and use case.
6. What is the correct spark plug gap?
The gap varies by engine, usually 0.6–1.1 mm (0.024–0.044 in). Use a feeler gauge to check and adjust it.
7. What happens if I use the wrong spark plug?
Using the wrong plug can lead to:
- Misfires
- Poor performance
- Engine knocking
- Damage to the engine or ignition system
8. Can spark plugs be cleaned and reused?
Yes, but it’s not recommended. Cleaning might not remove all deposits, and old plugs often have worn electrodes. Replacing is better for reliability.
9. Can I replace spark plugs myself?
Yes—if you’re comfortable with basic tools. Make sure to:
- Use the correct torque
- Avoid overtightening
- Set the proper gap
- Work on a cool engine
10. Do diesel engines have spark plugs?
No. Diesel engines use compression ignition instead of spark ignition. They use glow plugs to help start in cold conditions.
