Perforating is a sheet metal operation in which multiple small holes are punched in a sheet in a regular pattern.
The holes are made using a punch and die in a press machine.
It is commonly used for filters, screens, ventilation panels, and decorative sheets.
In this article:
Perforating in Sheet Metal
What is Perforating?

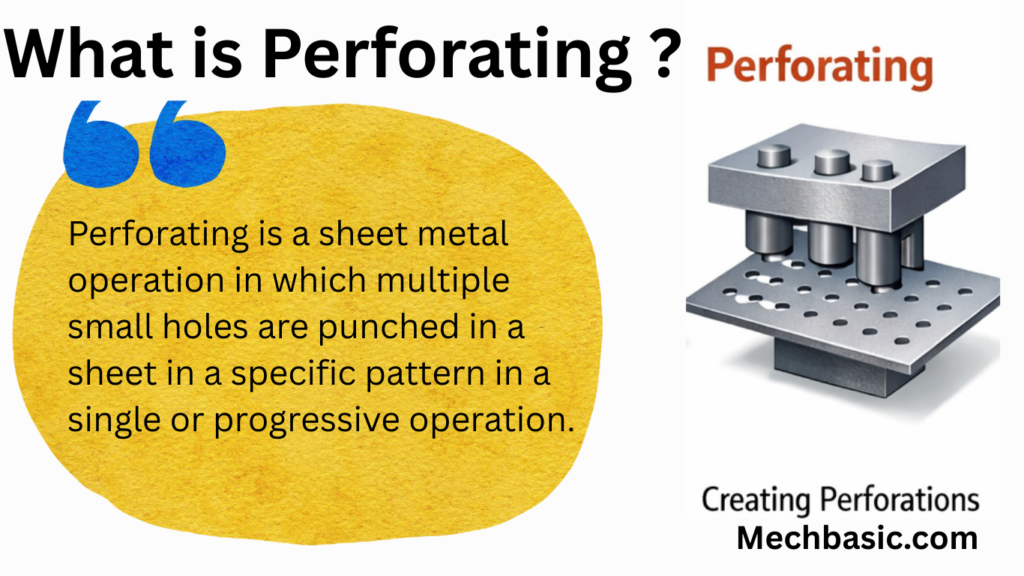

Perforating is a sheet metal operation in which multiple small holes are punched in a sheet in a specific pattern in a single or progressive operation.
👉 It is a repeated punching process
👉 The sheet with many holes is the final product
👉 The removed pieces (slugs) are scrap
Perforating is widely used for ventilation, filtration, and decorative purposes.
Working Principle
- Sheet is placed over a perforating die.
- A punch plate with multiple punches moves downward.
- Many holes are produced simultaneously.
- Slugs fall through the die.
- The perforated sheet is removed.
Main Components
1️⃣ Punch Plate
- Contains multiple punches arranged in pattern
2️⃣ Die Plate
- Matching multiple openings
3️⃣ Stripper Plate
- Removes sheet from punches
4️⃣ Press Machine
- Mechanical or hydraulic
Clearance in Perforating
Clearance between punch and die:
5–10% of sheet thickness
Proper clearance ensures:
✔ Clean holes
✔ Reduced burr
✔ Longer tool life
Force Calculation
Example
Given:
- 10 holes
- Hole diameter = 10 mm
- Thickness = 2 mm
- Shear strength = 300 MPa
Required force ≈ 188 kN
Common Hole Patterns
- Staggered pattern
- Straight-line pattern
- Circular pattern
- Decorative pattern
Applications
- Ventilation panels
- Filters and strainers
- Speaker covers
- Automobile grills
- Safety guards
- Architectural facades
Advantages
✔ High production rate
✔ Uniform hole pattern
✔ Good appearance
✔ Suitable for mass production
Disadvantages
✖ High tool cost
✖ Tool wear
✖ Burr formation
✖ Requires powerful press for thick sheets
Difference Between Punching and Perforating
| Feature | Punching | Perforating |
|---|---|---|
| Number of Holes | Single or few | Many holes |
| Tool | Single punch | Multiple punches |
| Application | Isolated holes | Patterned holes |
Summary:
- Perforating is a multiple punching operation.
- Holes are produced in a regular pattern.
- Force increases with number of holes.
- Clearance is important for quality finish.
