Oxygen sensors (also called O₂ sensors) play a critical role in modern automobiles by helping the engine maintain the optimal air-fuel mixture for efficient combustion and low emissions.
In this article:

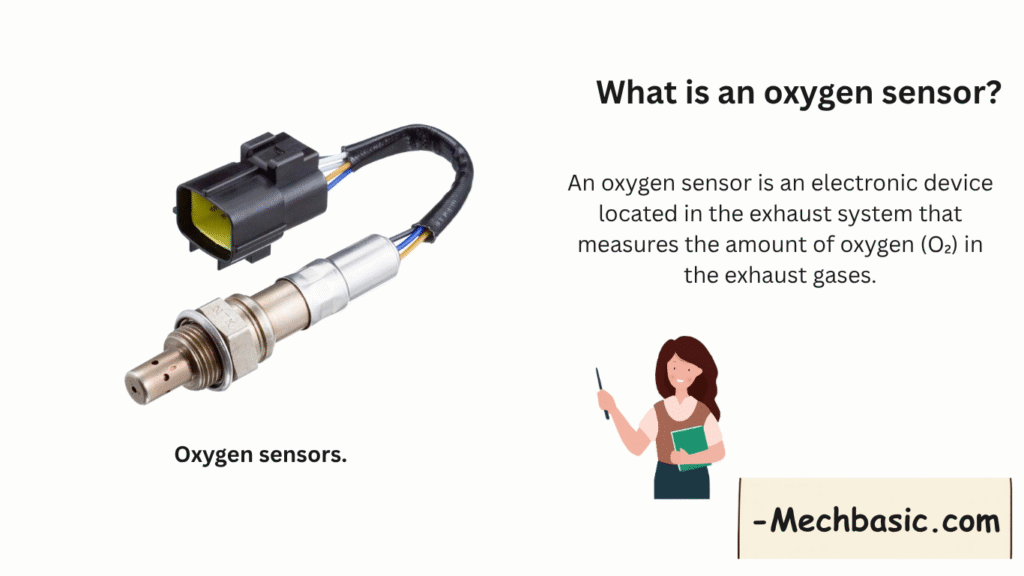

What Is an Oxygen Sensor?
An oxygen sensor is an electronic device located in the exhaust system that measures the amount of oxygen (O₂) in the exhaust gases.
Where is oxygen sensors located?
Oxygen sensors are located in the exhaust system, usually before (upstream) and after (downstream) the catalytic converter.

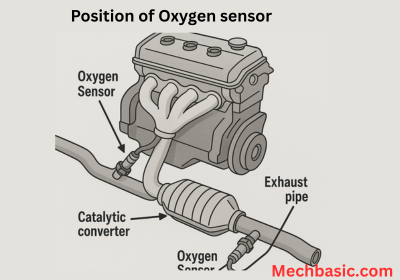

Here is the image showing the position oxygen sensor in vehicle.
How Does an Oxygen Sensor Work? (Step-by-Step)
1. Placement in the Exhaust System
- Most modern vehicles have two to four sensors:
- Upstream sensor (before the catalytic converter)
- Downstream sensor (after the catalytic converter)
2. Sensor Detects Oxygen Levels
- The sensor’s tip is made of a zirconia (zirconium dioxide) ceramic element coated with platinum.
- One side is exposed to exhaust gases, and the other to outside air.
3. Generates Voltage Based on Oxygen Difference
- It measures the difference in oxygen between exhaust gas and atmospheric air.
- If there’s:
- Less oxygen (rich mixture) → sensor produces high voltage (0.8–1.0 volts)
- More oxygen (lean mixture) → sensor produces low voltage (0.1–0.3 volts)
- This voltage signal is sent to the Engine Control Unit (ECU).
4. ECU Adjusts the Air-Fuel Mixture
- The ECU uses the sensor signal to:
- Adjust fuel injection timing
- Maintain a 14.7:1 air-to-fuel ratio (stoichiometric ratio for gasoline engines)
- This helps:
- Maximize fuel efficiency
- Reduce emissions
- Protect the catalytic converter
5. Continuous Feedback Loop
- The sensor constantly updates the ECU while the engine is running.
- This feedback loop keeps the engine running efficiently under different conditions (idling, accelerating, cruising, etc.).
Types of Oxygen Sensors
| Type | Description |
|---|---|
| Zirconia O₂ sensor | Most common; generates voltage based on oxygen difference |
| Wideband O₂ sensor | Provides more precise data; used in modern engines for better fuel control |
| Titania O₂ sensor | Uses resistance change instead of voltage; less common |
Symptoms of a Bad Oxygen Sensor:
- Check Engine Light comes on
- Poor fuel economy
- Rough idling or stalling
- Failed emissions test
- Increased exhaust emissions
- Black smoke from exhaust
Maintenance Tips for Oxygen sensors
- Oxygen sensors typically last 60,000 to 100,000 km (or 40,000 to 60,000 miles).
- Replacing a faulty sensor can improve fuel economy by 10–15%.
- Use only OEM-quality sensors to ensure proper ECU function.
Summary Table:
| Component | Function |
|---|---|
| Upstream O₂ sensor | Measures O₂ before catalytic converter; adjusts fuel mixture |
| Downstream O₂ sensor | Monitors efficiency of the catalytic converter |
| ECU | Uses O₂ data to optimize engine performance and emissions |
FAQ Section:
What is an oxygen sensor?
An oxygen sensor (O2 sensor) measures the oxygen level in a vehicle’s exhaust gases to help the engine control fuel-air mixture for optimal combustion.
What does an oxygen sensor do?
It sends data to the engine control unit (ECU) to adjust fuel injection, ensuring efficient combustion, better fuel economy, and lower emissions.
How many oxygen sensors does a car have?
Most modern cars have 2 to 4 oxygen sensors — one or more before the catalytic converter (upstream) and one or more after (downstream).
What are the symptoms of a bad oxygen sensor?
Common signs include poor fuel economy, rough idling, engine misfires, check engine light, and failed emissions tests.
Can you drive with a bad oxygen sensor?
Yes, but it’s not recommended — it can lead to poor performance, higher emissions, and damage to the catalytic converter.
How often should oxygen sensors be replaced?
Typically every 60,000 to 100,000 miles, depending on the sensor type and vehicle manufacturer recommendations.
What’s the difference between upstream and downstream oxygen sensors?
Upstream sensors monitor the air-fuel mixture before the catalytic converter; downstream sensors check converter efficiency after exhaust gases pass through it.
Will a bad oxygen sensor cause the check engine light?
Yes, a faulty sensor often triggers the check engine light and will generate a specific error code (like P0131, P0420, etc.).
How much does it cost to replace an oxygen sensor?
Replacement usually costs between $100 and $300 per sensor, including parts and labor.
Can I replace an oxygen sensor myself?
Yes, with the right tools and access, it’s a manageable DIY task—but be sure to use the correct sensor for your vehicle.
