A combustion chamber is a critical component in engines and turbines where the controlled burning of fuel with an oxidizer (usually air) takes place to release energy. This energy is then used to power mechanical systems, such as the pistons in an internal combustion engine or the turbine blades in a jet engine.

Combustion Chamber Overview

Function:

The primary purpose of the combustion chamber is to:

Mix fuel and air efficiently.
Ignite the mixture at the right time.
Burn the mixture completely and efficiently.
Convert chemical energy into thermal energy.
Contain the high-pressure, high-temperature gases safely.

Types of Combustion Chambers:

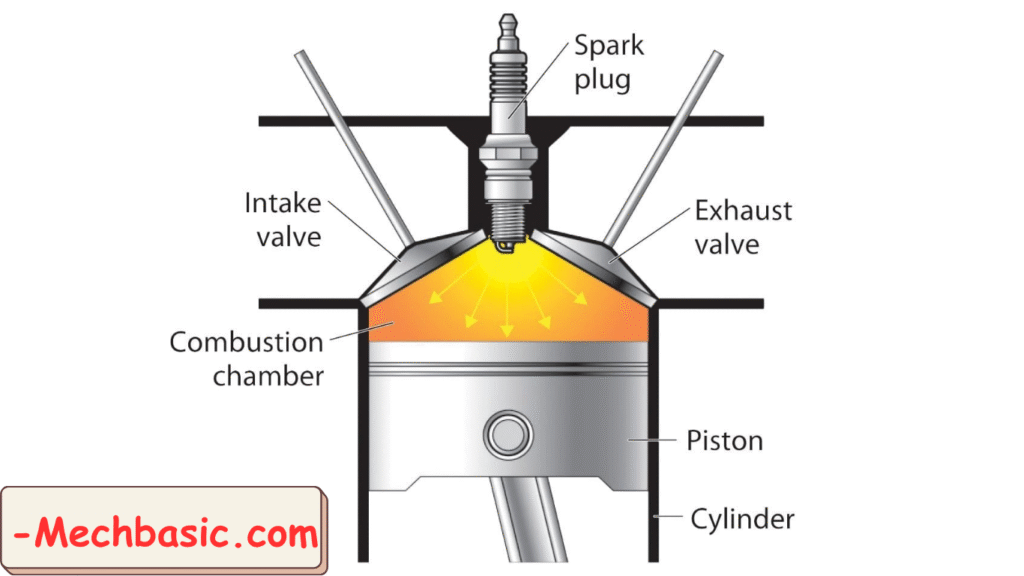

1. Internal Combustion Engine (ICE) Combustion Chamber

Found in: Cars, motorcycles, trucks, etc.
Combustion occurs inside the engine cylinder.

Subtypes:

Spark-ignition engines (Gasoline engines): Use a spark plug to ignite the air-fuel mixture.
Compression-ignition engines (Diesel engines): Rely on compression heating to ignite the diesel-air mixture.

Common shapes:

Hemispherical: Efficient airflow, good thermal efficiency.
Pent-roof: Allows multiple valves, improving breathing.
Bowl-in-piston (diesel): Creates strong swirl for better air-fuel mixing.

2. Gas Turbine or Jet Engine Combustion Chamber

Found in: Aircraft engines, power generation turbines.
Fuel is continuously injected and burned with compressed air.

Types:

Can-type: Individual, self-contained chambers.
Annular: Ring-shaped, lightweight, and compact.
Can-annular: Hybrid of the two, balances ease of maintenance and efficiency.

Key Parts of a Combustion Chamber:

Inlet (Air Intake):
- Introduces and preconditions air (often compressed).
Fuel Injector or Carburetor:
- Meters and sprays fuel into the air stream.
Ignition Source:
- Spark plug (for gasoline) or glow plug/compression (for diesel).
Combustion Zone:
- Turbulent mixing and burning take place.
- High pressure and temperature generated.
Liner or Walls:
- Heat-resistant materials (e.g., ceramics, Inconel) to withstand high temps.
Cooling Systems:
- Air or liquid-cooled surfaces prevent overheating.
Outlet (Exhaust or Nozzle):
- Directs hot gases to turbines or exhaust pipes for useful work or expulsion.

How does a combustion chamber work?

The combustion chamber is where fuel and air mix, ignite, and burn, converting chemical energy into thermal and kinetic energy. The working process varies slightly between engine types (e.g., internal combustion vs. gas turbines), but the fundamental principles are similar.

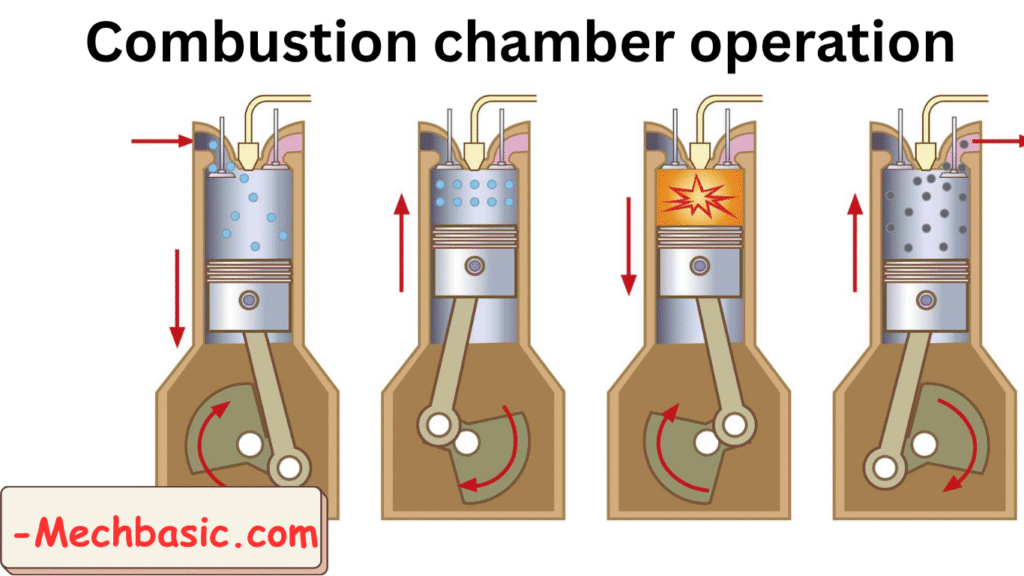

Stages of Combustion Chamber Operation:

🔹 1. Air Intake and Compression

Air is drawn into the combustion chamber.
In internal combustion engines (ICE), the piston compresses the air (or air-fuel mixture).
In jet or gas turbine engines, a compressor increases the air pressure before it enters the combustion chamber.

🔹 2. Fuel Injection and Mixing

Fuel is injected into the compressed air:
- In spark-ignition (SI) engines: a fine mist is sprayed into the air before compression or during intake.
- In compression-ignition (CI) engines: fuel is injected directly into highly compressed hot air.
- In turbines: fuel is sprayed continuously by fuel nozzles.
Mixing occurs through:
- Swirl (rotational airflow).
- Tumble (vertical mixing).
- Direct turbulence from chamber geometry or injectors.

🔹 3. Ignition

In gasoline engines: a spark plug ignites the air-fuel mix.
In diesel engines: auto-ignition happens due to high pressure and temperature.
In turbines: igniter plugs start combustion, then it continues continuously as long as fuel and air flow.

🔹 4. Combustion

The air-fuel mixture burns, releasing thermal energy.
This process raises the temperature and pressure of gases rapidly.
The reaction is exothermic, converting chemical bonds into heat.

🔹 5. Expansion and Work Extraction

High-pressure gases expand:
- In ICEs: the gases push the piston down (power stroke).
- In turbines: gases expand through the turbine stages, turning blades.
- In rockets: gases exit through the nozzle to generate thrust.

🔹 6. Exhaust

Burned gases are expelled:
- In ICEs: through the exhaust valve to the exhaust system.
- In turbines: through the nozzle to atmosphere or next turbine stage.

💥 Combustion Process (Simplified)

Air intake and compression.
Fuel injection/mixing.
Ignition (via spark or compression).
Rapid combustion (exothermic reaction).
High-pressure gases expand and do work.
Exhaust gases expelled.

Video for working of combustion chamber.

🔬 Thermodynamic Cycle Behind It

1. Otto Cycle (Gasoline engines):

Intake → Compression → Combustion (constant volume) → Expansion → Exhaust.

2. Diesel Cycle (Diesel engines):

Intake → Compression → Combustion (constant pressure) → Expansion → Exhaust.

3. Brayton Cycle (Gas turbines):

Isentropic Compression → Constant Pressure Combustion → Isentropic Expansion.

🔧 Design Considerations:

Efficiency: Maximize energy conversion.
Emissions: Minimize NOx, CO, and unburned hydrocarbons.
Temperature control: Avoid material failure.
Air-fuel ratio: Ideal balance for combustion.
Turbulence and swirl: Improve mixing and burning.

Applications of combustion chambers

Automobiles and motorcycles
Aircraft (jet engines, rockets)
Power plants (gas turbines)
Marine engines
Industrial burners and furnaces

🧯 Emissions Control in Combustion

CO (Carbon monoxide): Incomplete combustion.
HC (Unburnt hydrocarbons): Poor mixing, misfires.
NOx (Nitrogen oxides): High combustion temperature.
Control via:
- Exhaust Gas Recirculation (EGR)
- Catalytic converters
- Lean burn strategies

FAQ Section:

What is a combustion chamber?
It’s the space in an engine or turbine where air and fuel mix and burn to produce energy.

Where is the combustion chamber located?

In piston engines: inside the engine cylinder, typically above the piston.

In gas turbines: between the compressor and turbine sections.

Why is combustion necessary in engines?
Combustion releases thermal energy that drives pistons or turbines to produce mechanical work or thrust.

What are the types of combustion chambers in engines?

Spark-ignition (SI) chambers (e.g., gasoline engines)

Compression-ignition (CI) chambers (e.g., diesel engines)

Turbine/jet engine chambers (can-type, annular, can-annular)

What is the difference between can, annular, and can-annular combustion chambers?

Can-type: Separate chambers, easy to maintain

Annular: Continuous ring, lightweight and efficient

Can-annular: Combines benefits of both

What is a hemispherical combustion chamber?
A dome-shaped chamber offering good airflow and efficient combustion, often used in performance engines.

What materials are used in combustion chambers?
Heat-resistant alloys like Inconel, ceramics, or aluminum alloys (in cooled zones).

How does a combustion chamber work?

Air is compressed

Fuel is injected/mixed

The mixture is ignited

Resulting gases expand to produce work

What is the role of turbulence in combustion chambers?
It enhances mixing of air and fuel, leading to better and faster combustion.

How is combustion initiated?

By a spark plug (in gasoline engines)

By compression heating (in diesel)

By igniters (in turbines/rockets)

What affects combustion efficiency?

Air-fuel ratio

Temperature and pressure

Chamber shape and turbulence

Ignition timing

What is knocking in a combustion chamber?
Premature or uneven combustion causing shock waves, damaging engine parts.

What is the ideal air-fuel ratio?
For gasoline: 14.7:1 (stoichiometric). Diesel and lean-burn engines may differ.

What is a swirl or tumble in combustion?
Rotational motions of air inside the chamber that improve mixing and burning.

Why is cooling important in combustion chambers?
To prevent overheating, knocking, and material damage.

What is stratified charge combustion?
A method where a richer air-fuel mix is near the spark plug and leaner elsewhere, improving efficiency.

What is the compression ratio, and how does it relate to combustion?
It’s the ratio of cylinder volume before and after compression; higher ratios improve efficiency but increase knock risk.

Can combustion chambers be designed for alternative fuels?
Yes, they can be optimized for biofuels, hydrogen, LPG, etc., with adjustments to injection and ignition systems.

How do combustion chambers affect emissions?
Incomplete combustion leads to CO, HC, NOx emissions. Chamber design and air-fuel control help reduce them.

What are common issues with combustion chambers?

Carbon buildup

Cracks due to thermal stress

Pre-ignition and knocking

Injector clogging (in direct injection engines)
