What is an Ignition system in Automobile?

In this article, we discuss the ignition system in an automobile in depth.

What Is An Ignition System?

The ignition system is a crucial component in a spark-ignition engine (typically a gasoline or petrol engine).
It provides the high voltage spark needed to ignite the air-fuel mixture in the engine’s combustion chamber.
This spark starts the combustion process — turning chemical energy into mechanical energy.

What is the function of an ignition system?

Generate a high voltage spark at the right moment.
Distribute the spark to each cylinder in proper sequence.
Adjust the spark’s timing to account for engine speed and load.
Improve combustion for greater power, efficiency, and reduced emissions.

Main Components of ignition system

1️⃣ Battery or Magneto:
Provides low voltage (typically 12V) as a starting power.

2️⃣ Ignition Coil:
Transforms low voltage into high voltage (20,000 volts or more) to produce a spark.

3️⃣ Distributor (in older systems):
Distributes high voltage from the ignition coil to each spark plug in the proper order.

4️⃣ Contact Breaker (Points) or Transistor/Switch:
Controls when the ignition coil is interrupted, triggering spark generation.

5️⃣ Condenser (with points) or Capacitor:
Precludes excess arcing at points and helps produce a strong spark.

6️⃣ Spark Plugs:
Provides a gap for the spark to arc across, igniting the air-fuel mixture in the cylinder.

7️⃣ Ignition Wires:
Transfers high voltage from the distributor or coil to the spark plugs.

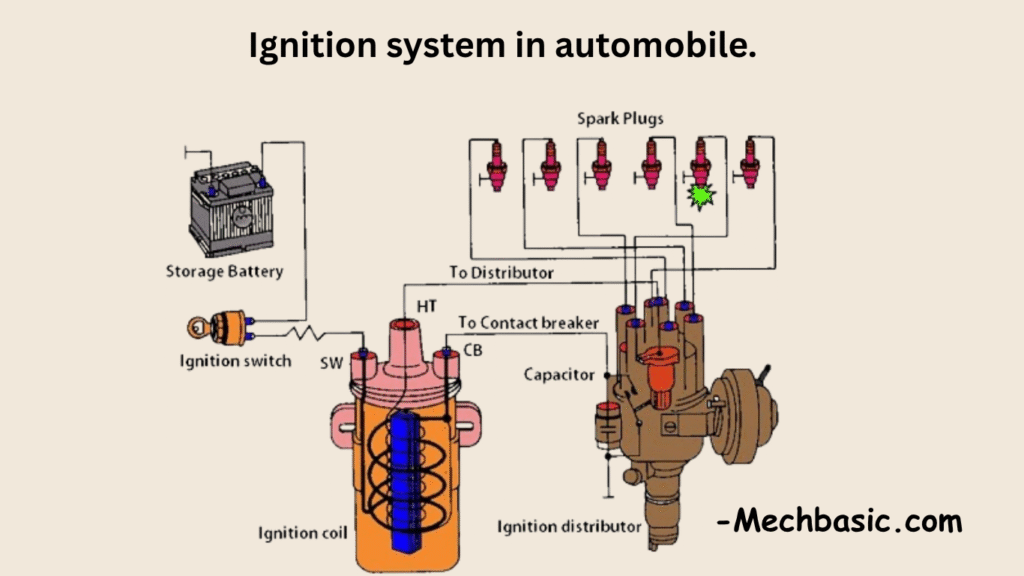

Step by step of working of an Ignition system:

Ignition Switch Turned On
- When the driver turns the key (or pushes the button), the ignition switch closes the circuit between the battery and the ignition coil.
Current to Ignition Coil (Low Voltage Circuit)
- 12V DC from the battery flows through the primary winding of the ignition coil.
Contact Breaker Operates (in traditional systems)
- A camshaft opens and closes the contact breaker points in sync with engine rotation.
- When the contact breaker opens, it interrupts the current, causing a sudden magnetic collapse in the coil.
Voltage Induced in Secondary Coil (High Voltage Generation)
- The magnetic collapse in the primary coil induces a high voltage (20,000V–40,000V) in the secondary coil.
Capacitor Absorbs Arc
- A capacitor (or condenser) absorbs the energy spike, preventing arcing across the contact points and ensuring efficient spark generation.
Distributor Sends Spark to Correct Cylinder
- The high voltage goes to the distributor, which routes it to the correct spark plug via the rotor arm and ignition leads, according to engine timing.
Spark Plug Ignites Air-Fuel Mixture
- The spark plug receives the voltage and creates a spark across its gap.
- This ignites the air-fuel mixture in the combustion chamber, pushing the piston down to produce power.
Cycle Repeats for Each Cylinder
- The system repeats this sequence for each cylinder, in the correct firing order, as long as the engine runs.

Types of Ignition System

1. Battery Coil Ignition System (Conventional):

Uses a battery to provide low voltage.
Controlled by contact breaker points and condenser.
Usually found in older vehicles.

2. Magneto Ignition System:

Generates its own voltage without a battery (using a magneto).
Often used in small engines (motorcycles, scooters, chainsaws, small aircraft).

3. Transistorized Coil Ignition System:

Uses a transistor instead of mechanical points to interrupt current flow.
Provides greater control, less wear, and a stronger spark.

4. Capacitor Discharge Ignition (CDI) System:

Rapidly discharge a capacitor to produce a strong spark.
Offers faster voltage delivery, helpful for high rpm applications.

5. Distributor-less Ignition System (DIS) or Coil-on-Plug:

Each cylinder may have its own ignition coil directly attached to its spark plug, with electronic control instead of a distributor.
Provides greater reliability, control, and reduced maintenance.

Also Read: Types of ignition systems in automobile.

Summary

The ignition system is critical for engine performance and combustion control.
It directly impacts power, emissions, and fuel efficiency.
Today’s modern electronic ignition systems enable greater control and robustness — delivering strong sparks under all conditions while requiring less maintenance.

Watch video of Ignition system animation in automobile

FAQ Section:

1. What is an ignition system in an automobile?

An ignition system is responsible for igniting the air-fuel mixture in the engine’s combustion chamber using an electric spark. It is essential for starting and running petrol engines.

2. What are the main components of an ignition system?

Battery

Ignition switch

Ignition coil

Contact breaker (in older systems)

Capacitor

Distributor

Spark plugs

Electronic Control Unit (in modern systems)

3. How does the ignition system work?

It converts low-voltage battery power into high voltage using the ignition coil. This high voltage is sent to the spark plugs (via a distributor or directly), causing a spark that ignites the air-fuel mixture.

4. What is the difference between conventional and electronic ignition systems?

Conventional systems use mechanical components like contact breakers and distributors. Electronic systems use sensors and an ECU to control spark timing, offering better efficiency and reliability.

5. What is the role of the ignition coil?

The ignition coil acts as a transformer, converting 12V battery power into high voltage (20,000V or more) needed for spark generation.

6. What are the signs of a faulty ignition system?

Engine misfires

Difficulty starting the engine

Poor fuel economy

Engine stalling

Check engine light (in modern vehicles)

7. What is a spark plug, and why is it important?

A spark plug delivers the high-voltage spark that ignites the air-fuel mixture. It’s crucial for engine performance, fuel efficiency, and emissions.

8. How often should spark plugs be replaced?

Generally every 30,000 to 100,000 kilometers, depending on the type and manufacturer recommendations.

9. Can a car run without a working ignition system?

No. Without a functioning ignition system, the engine will not start or run since the air-fuel mixture cannot be ignited.

10. What is the advantage of electronic ignition over mechanical systems?

Electronic ignition systems offer more precise spark timing, better fuel efficiency, less maintenance, and improved engine performance.
