What is a Cooling System?
A cooling system is a mechanism that removes heat from a space, device, or fluid to maintain a lower temperature. It works using heat transfer methods like refrigeration, conduction, convection, or radiation
Types of Cooling Systems in HVAC:
In HVAC, cooling systems are categorized based on their working principles and applications. The main types include Chillers, DX (Direct Expansion) Systems, and VRF (Variable Refrigerant Flow) Systems. Here’s a breakdown of each:

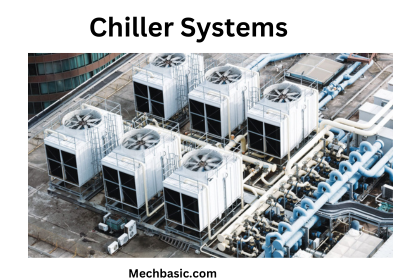

1. Chiller Systems (Centralized Cooling)
Used in: Large buildings, industrial applications, hospitals, commercial spaces.
- How It Works:
- Chillers use water as a secondary cooling medium.
- The chiller cools water, which is then circulated through air handling units (AHUs) or fan coil units (FCUs) to remove heat.
- The heat is rejected using cooling towers (in water-cooled chillers) or air-cooled condensers (in air-cooled chillers).
- Types of Chillers:
- Water-Cooled Chillers: More efficient but require cooling towers.
- Air-Cooled Chillers: Easier to install but less efficient.
- Absorption Chillers: Use heat energy instead of mechanical compressors.
- Pros:
- Efficient for large buildings.
- Provides stable cooling with less wear on components.
- Cons:
- Higher initial cost.
- Requires large space for chillers, piping, and cooling towers.

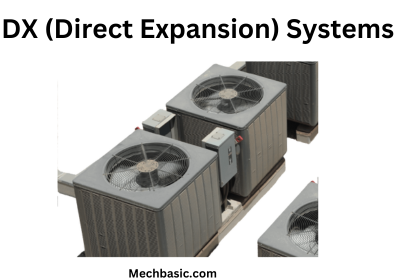

2. DX (Direct Expansion) Systems (Decentralized Cooling)
Used in: Residential, small commercial buildings, and server rooms.
- How It Works:
- DX systems use refrigerant to directly cool the air in the evaporator coil.
- No secondary medium (like chilled water) is involved.
- Examples: Split AC, Packaged AC, Rooftop Units (RTUs).
- Types of DX Systems:
- Split System: Indoor evaporator and outdoor condenser unit.
- Packaged Unit: All components (compressor, condenser, and evaporator) in one unit.
- Rooftop Unit (RTU): Packaged unit installed on roofs for commercial buildings.
- Pros:
- Lower initial cost.
- Easier to install and maintain.
- More efficient in small-scale applications.
- Cons:
- Less efficient than chillers for large buildings.
- Limited cooling capacity.
- Shorter lifespan compared to chillers.

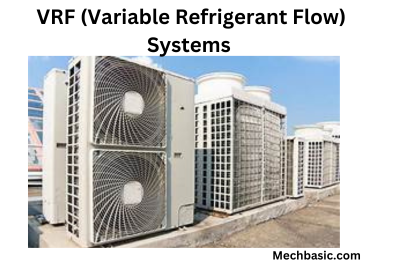

3. VRF (Variable Refrigerant Flow) Systems (Energy-Efficient Cooling)
Used in: Office buildings, hotels, mixed-use buildings.
- How It Works:
- Uses refrigerant as the cooling medium, similar to DX systems.
- Multiple indoor units are connected to one or more outdoor units.
- Advanced controls regulate refrigerant flow based on demand.
- Types of VRF Systems:
- Heat Pump VRF: Can provide cooling OR heating, but not simultaneously.
- Heat Recovery VRF: Can provide cooling and heating simultaneously, transferring heat from one zone to another.
- Pros:
- Highly efficient (uses only the needed refrigerant amount).
- Provides zoned cooling and heating.
- Space-saving, as no ductwork is required.
- Cons:
- Higher initial cost than DX systems.
- Complex installation and maintenance.
Comparison of Cooling systems:
| Feature | Chiller Systems | DX Systems | VRF Systems |
|---|---|---|---|
| Best For | Large buildings | Homes, small buildings | Medium-sized buildings |
| Cooling Medium | Water | Refrigerant | Refrigerant |
| Efficiency | High for large scale | Moderate | Very high (modulated refrigerant flow) |
| Installation Cost | High | Low | Moderate to High |
| Flexibility | Low (centralized) | Low (limited zoning) | High (individual zone control) |
| Maintenance Complexity | High | Low | Moderate |
Conclusion
- Use chillers for large-scale applications where energy efficiency and central cooling are priorities.
- Use DX systems for small, independent cooling applications.
- Use VRF systems for flexible, energy-efficient cooling with zoning capabilities.
