Here’s a detailed explanation of a Synchromesh Gearbox:
In this article:
Synchromesh Gearbox :
A synchromesh gearbox is a type of constant mesh manual transmission that uses synchronizer rings to match the speed of gears before engagement.
It eliminates gear clash (grinding) and allows smooth gear shifting without double-clutching.
Synchromesh gearboxes are standard in modern cars because they make shifting easier and safer.
1️⃣ Purpose
- Provide smooth gear shifting in a constant mesh gearbox.
- Match rotational speeds of main shaft and selected gear.
- Prevent gear grinding during engagement.
- Eliminate the need for double-clutching in manual transmissions.

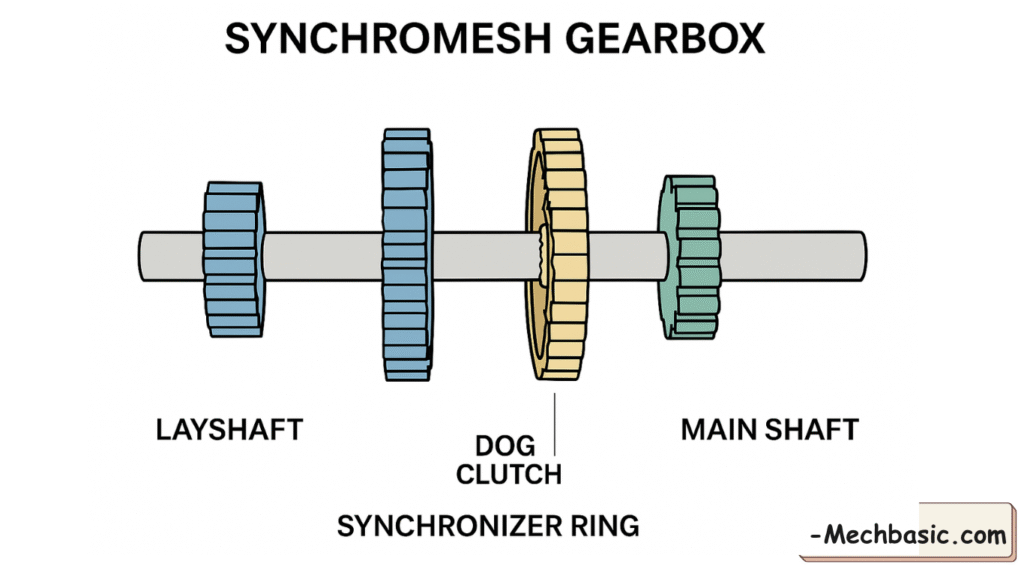

2️⃣ Main Components
- Input Shaft
- Receives torque from engine via clutch.
- Layshaft (Countershaft)
- Always rotates; carries gears meshed with main shaft gears.
- Main Shaft (Output Shaft)
- Connects to the driveshaft; receives power from engaged gear.
- Gears
- All gears are constantly meshed on the layshaft and main shaft.
- Dog Clutch / Sliding Collar
- Moves along main shaft to lock a specific gear.
- Synchronizer Ring (Synchro Ring / Baulk Ring)
- Conical ring that matches the rotational speed of the gear to the shaft before engagement.
- Works using friction between the conical surface of the ring and gear.
- Hub
- Fixed on the main shaft; sliding collar moves around it to engage gears via synchro ring.
3️⃣ Working Principle
- Driver moves gear lever → sliding collar moves toward desired gear.
- Synchronizer ring contacts the gear’s cone → friction slows or speeds up the gear to match main shaft speed.
- Once speeds are synchronized → dog clutch locks gear to main shaft.
- Torque flows: Engine → Clutch → Input Shaft → Layshaft → Engaged Gear → Main Shaft → Wheels.
Reverse Gear
- Uses an idler gear; synchronizer usually not used for reverse.
4️⃣ Advantages
- Eliminates gear grinding → smooth shifts.
- No need for double-clutching, easy for beginners.
- Supports higher number of forward gears (4–6 speeds).
- Compatible with high-speed and modern engines.
- Longer gearbox life due to reduced wear on dog teeth.
5️⃣ Disadvantages
- Slightly more complex and heavier than plain constant mesh.
- Requires good lubrication.
- Slightly more expensive to manufacture than standard constant mesh gearbox.
6️⃣ Applications
- Modern passenger cars and light commercial vehicles.
- Almost all manual cars today use synchromesh on 2nd to top gears; some include 1st gear as well.
Summary:
A synchromesh gearbox = constant mesh gearbox + synchronizer rings →
- Smooth gear shifts
- No double-clutching required
- Prevents gear grinding
- Longer gear life
Key Difference from Constant Mesh:
- Constant mesh prevents gear clash but may still require double-clutching for lower gears.
- Synchromesh adds a speed-matching mechanism, making it much easier to operate.
FAQ Section:
1. What is a synchronous mesh (synchromesh) gearbox?
A synchromesh gearbox is a type of manual transmission that uses synchronizers (synchro cones) to match the speed of the gears before engagement. This allows for smooth and quiet gear shifting without grinding.
2. How does a synchromesh gearbox differ from a constant mesh gearbox?
In both types, all gears are constantly meshed, but:
- In a constant mesh gearbox, gears are engaged using dog clutches and require double clutching.
- In a synchromesh gearbox, synchronizer units automatically equalize gear and shaft speeds, making shifting smoother and easier.
3. What are the main components of a synchromesh gearbox?
Key components include:
- Clutch shaft
- Main shaft
- Countershaft (layshaft)
- Gears (helical or spur type)
- Synchronizer rings (cones)
- Dog clutches
- Selector mechanism
4. How does synchronization occur during gear shifting?
When the driver selects a gear, the synchronizer cone first rubs against the gear cone, using friction to match speeds. Once the speeds are synchronized, the dog teeth engage smoothly without any grinding noise.
5. What are the advantages of a synchromesh gearbox?
- Smooth and quiet gear changes
- No need for double clutching
- Reduced wear and tear on gears
- Easier to operate, especially for beginners
- Improved driving comfort
6. What are the disadvantages of a synchromesh gearbox?
- More complex in design
- More expensive to manufacture and repair
- Synchronizer rings wear out over time and may require replacement
7. Where is the synchromesh gearbox commonly used?
It is widely used in modern manual transmission cars, light commercial vehicles, and some motorcycles. Heavy trucks often use constant mesh or automated manual transmissions instead.
8. What type of gears are used in a synchromesh gearbox?
Typically, helical gears are used because they provide smooth, quiet, and efficient power transmission compared to spur gears.
9. How many synchronizers are usually found in a 5-speed gearbox?
Usually, 4 synchronizers are provided — one each for 2nd, 3rd, 4th, and 5th gears, while reverse gear is typically non-synchronized (engaged only when stationary).
10. What maintenance is required for a synchromesh gearbox?
- Regularly check and replace gear oil as per manufacturer recommendation
- Avoid aggressive or fast shifting to prevent synchronizer wear
- Listen for grinding or difficulty engaging gears, which may indicate worn synchros
