In this article, we give detailed explanation of a spring-type multi-plate clutch.
In this article:
Spring-Type Multi-Plate Clutch :
A spring-type multi-plate clutch is a multi-plate clutch system in which the clamping force on the plates is provided by coil springs or diaphragm springs.
It is commonly used in manual motorcycles, scooters, and some high-performance vehicles.
This type is slightly different from a hydraulic or automatic clutch because the springs themselves determine how tightly the plates are pressed together.

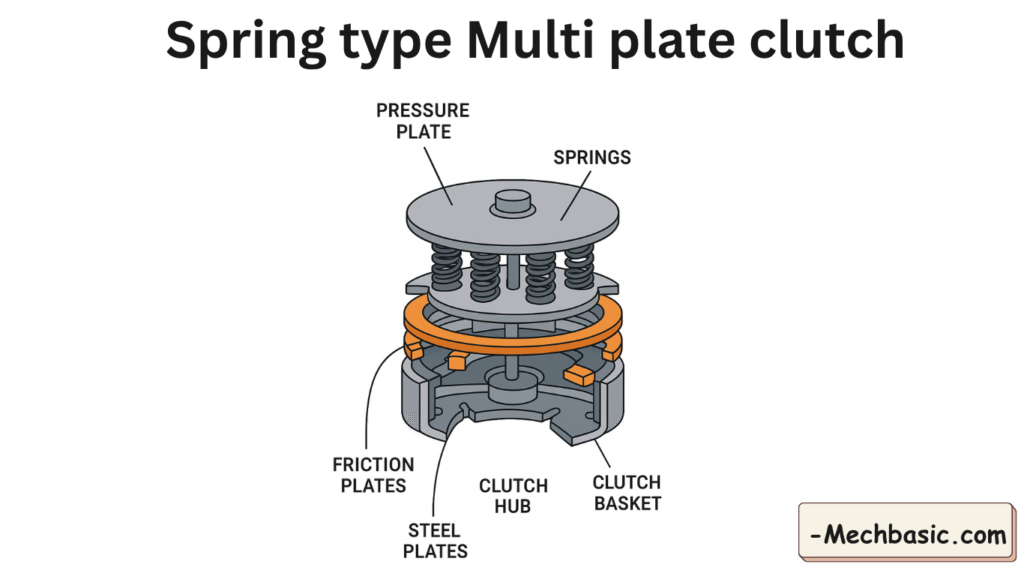

Construction:
The main components are:
- Clutch Plates
- Friction plates: Connected to the transmission input shaft.
- Steel plates: Connected to the clutch basket or housing.
- Arranged alternately to create multiple friction surfaces.
- Pressure Plate
- A metal plate that presses the friction plates against the steel plates.
- Springs
- Coil Springs: Multiple helical springs around the clutch hub.
- Diaphragm Springs: A single conical spring (more common in cars) that replaces multiple coil springs.
- Provide the force to keep the plates engaged.
- Clutch Hub & Basket
- Holds the plates and allows them to slide under engagement/disengagement.
- Release Mechanism
- Mechanical (clutch lever and cable) or hydraulic (master/slave cylinder) pushes the pressure plate back to disengage the clutch.
Working Principle:
The working principle is friction-based — same as other clutches — but the engagement force is provided by springs.
- Engaged State (Lever Released)
- Springs push pressure plate → friction plates press against steel plates.
- Torque flows from engine → clutch basket → friction plates → hub → gearbox input shaft.
- Disengaged State (Lever Pulled)
- Pulling the clutch lever moves the pressure plate back.
- Plates separate → no torque transmission → gearbox can shift freely.
Features:
- Spring force determines clutch stiffness:
- Stiffer springs → higher torque capacity but harder lever feel.
- Softer springs → easier lever but lower torque capacity.
- Compact design: Multiple plates allow high torque transmission in a small space.
- Durable & reliable if maintained properly.
Applications:
- Motorcycles (especially medium-to-large engines)
- Scooters with wet clutches
- Light racing vehicles or go-karts
- Some manual high-performance cars (less common now with hydraulic systems)
Advantages:
- Handles higher torque than single-plate clutches in small diameter.
- Simple design – easy to maintain.
- Works well in compact engine/transmission spaces.
- Can be wet (oil bath) or dry depending on design.
Disadvantages:
- Lever effort can be higher if springs are stiff.
- More moving parts → slightly more maintenance.
- Heat generation can wear plates if slipping occurs frequently.
Summary:
A spring-type multi-plate clutch =
Multiple friction & steel plates + springs providing clamping force → transmits high torque smoothly in a compact system.
It’s widely used in motorcycles, scooters, and some racing vehicles.
FAQ Section:
1. What is a spring-type multi-plate clutch?
A spring-type multi-plate clutch is a clutch that uses multiple friction plates and coil springs to transmit power between the engine and gearbox. The springs apply pressure to engage the plates and transfer torque.
2. Where is a multi-plate clutch commonly used?
It’s commonly used in motorcycles, racing cars, heavy vehicles, and automatic transmissions—where compact size and high torque transmission are needed.
3. How does a spring-type multi-plate clutch work?
When the clutch lever is released, coil springs push the pressure plates together, engaging the clutch and transmitting power. Pulling the lever compresses the springs, disengaging the plates and cutting power flow.
4. Why use multiple plates instead of one?
Multiple plates increase the contact area, allowing the clutch to handle more torque within a smaller diameter — ideal for high-performance or space-limited applications.
5. What is the function of springs in this clutch?
The springs provide clamping force that holds the clutch plates together during engagement, ensuring torque transmission without slipping.
6. What materials are used for clutch plates?
Typically:
- Friction plates: Steel with friction material (asbestos-free compounds, ceramics, or organic resins)
- Separator plates: Plain steel or aluminum
7. What are the advantages of a spring-type multi-plate clutch?
- Compact design
- High torque transmission
- Smooth operation
- Better heat dissipation due to multiple plates
- Ideal for limited-space engines (e.g., motorcycles)
8. What are the disadvantages?
- More complex design
- Higher maintenance
- Increased cost
- Heat build-up in prolonged use
9. How is a spring-type multi-plate clutch adjusted?
The spring tension or clutch cable play can be adjusted to ensure proper engagement/disengagement. Overly tight or loose settings cause clutch slip or drag.
10. What are common problems with this clutch type?
- Clutch slippage due to worn friction plates or weak springs
- Hard gear shifting from improper adjustment
- Overheating from excessive friction
- Spring fatigue reducing clamping force
