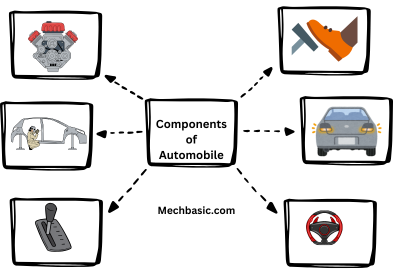

Automobiles consist of numerous components, each with a specific function that ensures the vehicle operates efficiently and safely. Below is an overview of the key components of an automobile and their functions:
In this article:
- 1. Engine
- 2. Transmission
- 3. Suspension System
- 4. Braking System
- 5. Steering System
- 6. Electrical System
- 7. Exhaust System
- 8. Fuel System
- 9. Cooling System
- 10. Air Conditioning and Heating System
- 11. Lighting and Signaling System
- 12. Tires and Wheels
- 13. Body and Frame
- 14. Interior Features
- 15. Safety Systems
- Other courses:

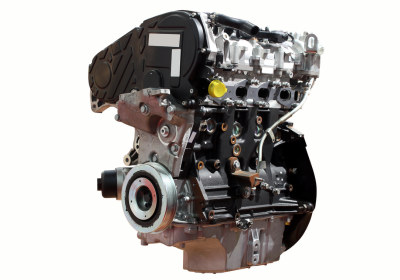

1. Engine
- Function: The engine is the heart of the vehicle, converting fuel (gasoline, diesel, electricity, or hydrogen) into mechanical energy to move the vehicle.
- Parts:
- Cylinder Block: Houses the cylinders and other engine components.
- Pistons: Move up and down inside the cylinders to create power.
- Crankshaft: Converts the up-and-down motion of the pistons into rotational motion.
- Camshaft: Controls the opening and closing of the engine’s intake and exhaust valves.
- Valves: Allow air and fuel into the engine and exhaust gases out.
- Timing Belt/Chain: Synchronizes the movement of the crankshaft and camshaft.
2. Transmission
- Function: The transmission transfers power from the engine to the wheels, allowing the vehicle to change speed and direction.
- Parts:
- Clutch (in manual transmission): Disengages the engine from the transmission so that gears can be changed.
- Gearbox: Contains various gears that adjust the vehicle’s speed and torque.
- Torque Converter (in automatic transmission): Transmits the engine’s power to the transmission using fluid.
- Differential: Distributes power to the wheels, allowing them to rotate at different speeds when turning.
3. Suspension System
- Function: The suspension system supports the vehicle’s weight, absorbs road shocks, and helps maintain tire contact with the road, ensuring stability and comfort.
- Parts:
- Shock Absorbers: Dampens the impact of road irregularities to prevent bouncing.
- Struts: Combine shock absorbers and springs into a single unit.
- Springs: Absorb and distribute the vehicle’s weight.
- Control Arms: Connect the wheels to the vehicle’s frame and control the movement of the suspension.

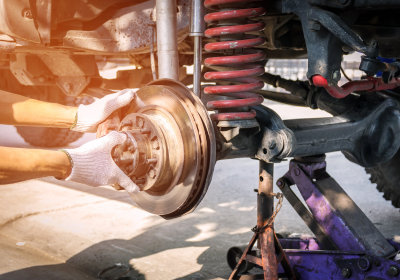

4. Braking System
- Function: The braking system slows down or stops the vehicle safely.
- Parts:
- Brake Pads: Press against the brake rotor to slow down the wheels.

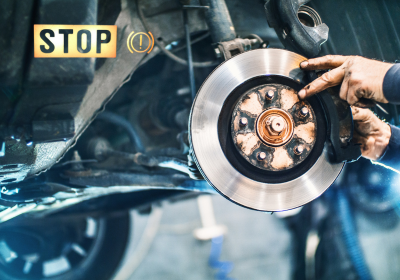

- Brake Rotors/Discs: Rotating metal discs that work with the brake pads to create friction and stop the vehicle.
- Brake Calipers: Press the brake pads against the rotors to create friction.
- Master Cylinder: Converts force from the brake pedal into hydraulic pressure.
- Anti-lock Braking System (ABS): Prevents wheel lock-up during hard braking, enhancing control.

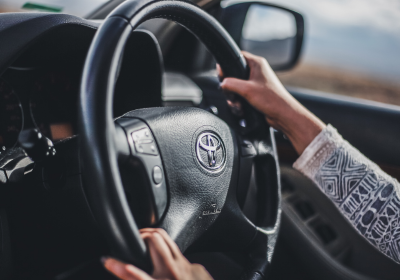

5. Steering System
- Function: The steering system allows the driver to control the direction of the vehicle.
- Parts:
- Steering Wheel: The interface the driver uses to control the direction of the vehicle.
- Steering Column: Connects the steering wheel to the steering mechanism.
- Rack and Pinion: A gear mechanism that turns the wheels in response to the steering wheel’s rotation.
- Power Steering Pump: Uses hydraulic pressure to make steering easier, especially at low speeds.
6. Electrical System
- Function: The electrical system powers the vehicle’s lights, air conditioning, infotainment systems, and more.
- Parts:
- Battery: Provides electrical energy to start the engine and power electrical components.
- Alternator: Charges the battery and powers the electrical system when the engine is running.
- Starter Motor: Turns the engine over to start it.
- Fuse Box: Protects the electrical components from overloading.

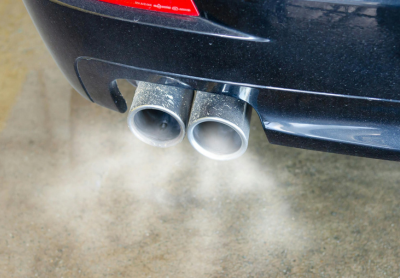

7. Exhaust System
- Function: The exhaust system directs the engine’s emissions away from the vehicle and reduces harmful pollutants.
- Parts:
- Exhaust Manifold: Collects exhaust gases from the engine cylinders and directs them to the exhaust pipe.
- Catalytic Converter: Reduces harmful pollutants in the exhaust gases by converting them into less harmful substances (like water vapor and carbon dioxide).
- Muffler: Reduces the noise produced by the engine’s exhaust.
- Exhaust Pipes: Carry the exhaust gases from the engine to the rear of the vehicle.
8. Fuel System
- Function: The fuel system stores and supplies fuel to the engine for combustion.
- Parts:
- Fuel Tank: Stores the fuel.
- Fuel Pump: Delivers fuel from the tank to the engine.
- Fuel Injectors: Spray fuel into the engine’s combustion chambers in a precise manner.
- Fuel Filter: Removes impurities from the fuel before it enters the engine.
9. Cooling System
- Function: The cooling system maintains the engine’s temperature to prevent overheating.
- Parts:
- Radiator: Cools the engine coolant as it circulates through the system.
- Water Pump: Circulates coolant throughout the engine and radiator.
- Thermostat: Regulates the temperature of the engine by controlling coolant flow.
- Coolant: A mixture of antifreeze and water that absorbs heat from the engine.

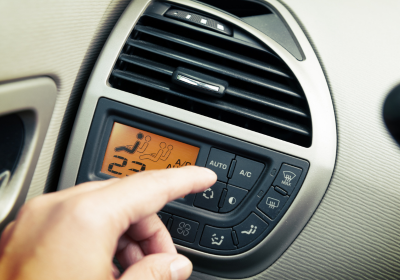

10. Air Conditioning and Heating System
- Function: Provides climate control within the cabin for comfort.
- Parts:
- Compressor: Compresses refrigerant gas to begin the cooling process.
- Condenser: Cools the compressed refrigerant gas, turning it into liquid form.
- Evaporator: Absorbs heat from the cabin air and cools it before blowing it into the cabin.
- Heater Core: A small radiator that uses engine heat to warm the cabin air.
11. Lighting and Signaling System
- Function: Provides visibility and communication with other drivers.
- Parts:

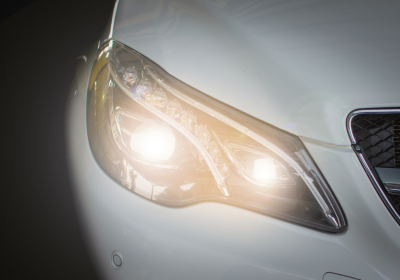

- Headlights: Illuminate the road ahead during nighttime driving.
- Taillights: Signal the vehicle’s presence to other drivers when braking or in motion.
- Turn Signals: Indicate the direction the driver intends to turn or change lanes.
- Fog Lights: Provide additional visibility in foggy or low-visibility conditions.

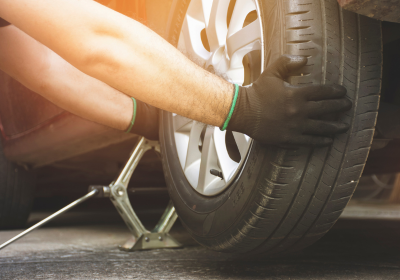

12. Tires and Wheels
- Function: Tires provide grip and traction, while wheels support the vehicle’s weight and allow it to move.
- Parts:
- Tires: Rubber components that provide traction and absorb shock.
- Rims: Metal or alloy wheels that hold the tires in place.
13. Body and Frame
- Function: The body provides the structural framework for the vehicle and houses the passenger compartment and other components.
- Parts:
- Chassis: The base frame that supports all vehicle components.
- Body Panels: The exterior parts (doors, roof, etc.) that shape the vehicle and protect the interior.
- Bumpers: Front and rear components designed to absorb impact in the event of a collision.

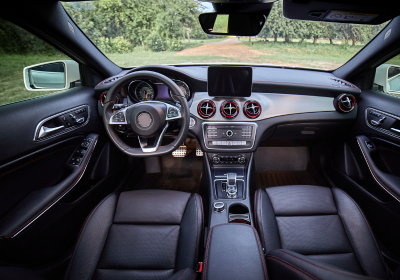

14. Interior Features
- Function: Interior components provide comfort, safety, and convenience for passengers.
- Parts:
- Seats: Provide seating for passengers and the driver.
- Dashboard: Contains controls and instruments such as the speedometer, tachometer, and fuel gauge.
- Infotainment System: Includes radio, navigation, and connectivity features.
- Airbags: Deploy during a collision to reduce the risk of injury.
Also Read: Tesla Model 3 Interior.
15. Safety Systems
- Function: These systems enhance the safety of the vehicle and its occupants.
- Parts:
- Seatbelts: Restrain passengers during a collision.
- Airbags: Inflate upon impact to cushion passengers during a crash.
- Electronic Stability Control (ESC): Helps prevent skidding and loss of control.
- Traction Control: Prevents wheel spin by adjusting engine power or applying brakes to specific wheels.
Each of these components plays a crucial role in ensuring the smooth, safe, and efficient operation of the vehicle. Together, they form the intricate system that allows automobiles to transport people and goods efficiently.
