The camshaft is a crucial component in internal combustion engines, responsible for operating the intake and exhaust valves at precisely timed intervals to ensure efficient engine performance.

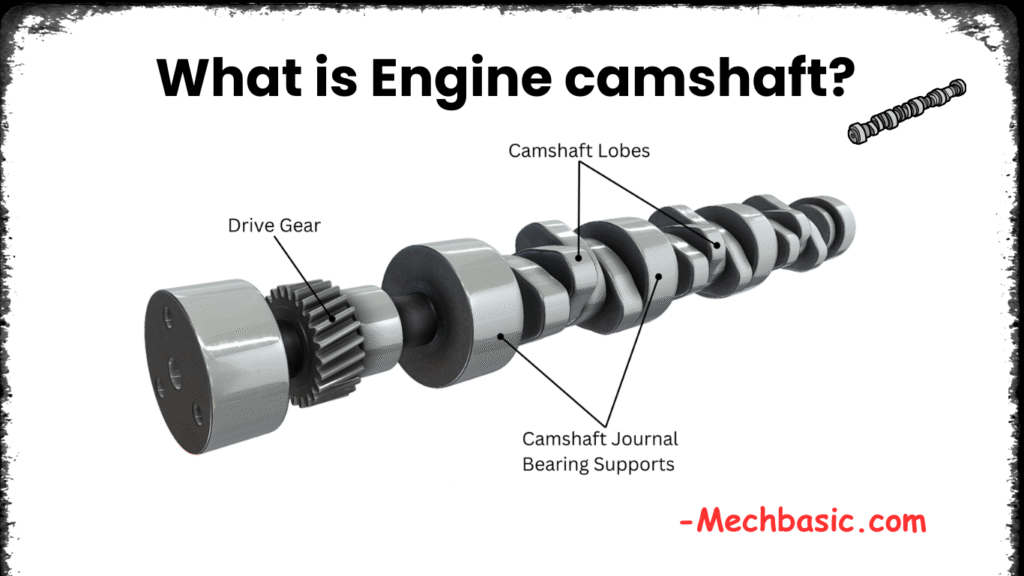

1. What Is a Camshaft?
A camshaft is a rotating shaft containing a series of lobes (cams). As it rotates, these lobes push against valve lifters, which open the engine’s intake and exhaust valves in sync with the piston movement.
Also Read : Difference between crankshaft and camshaft in detail.
2. Function of the Camshaft:
- Controls Valve Timing: Opens and closes intake and exhaust valves.
- Coordinates with Crankshaft: Usually driven by a timing belt, chain, or gears at half the crankshaft speed in four-stroke engines.
- Ensures Combustion Efficiency: Proper valve timing ensures optimal air-fuel intake and exhaust expulsion.

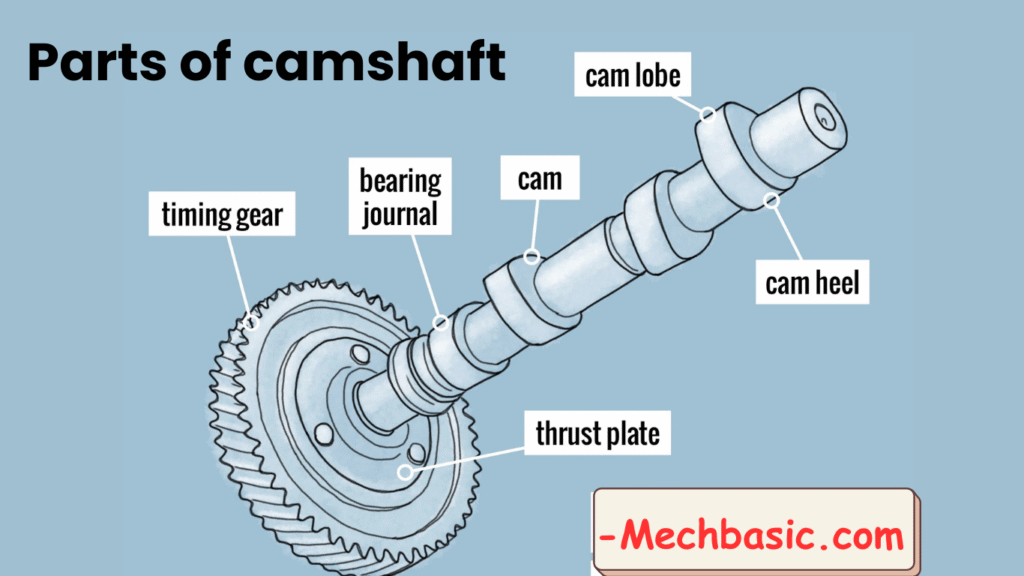

3. Camshaft Components:
- Lobes: Raised portions that actuate valves.
- Bearings: Allow smooth rotation inside the engine block or head.
- Cam Gear or Pulley: Transfers motion from the crankshaft.
- Thrust Plate (optional): Limits camshaft end play.
4. Types of Camshafts:
- Single Overhead Camshaft (SOHC): One camshaft per cylinder bank.
- Double Overhead Camshaft (DOHC): Two camshafts per cylinder bank (one for intake, one for exhaust).
- Cam-in-Block (OHV): Camshaft inside the engine block (common in older or American engines).
Also Read : Types of camshafts in detail.
5. Materials Used:
- Cast Iron: Durable and cost-effective (commonly used in mass production).
- Billet Steel: Stronger, often used in performance engines.
- Chilled Iron: Surface-hardened for high-wear resistance.
6. Camshaft Timing:
- Advanced Timing: Opens valves earlier—good for low-end torque.
- Retarded Timing: Opens valves later—improves high-RPM performance.
- Many modern engines use Variable Valve Timing (VVT) to adjust timing dynamically.
7. Common Camshaft Issues:
- Worn Lobes: Causes reduced valve lift and poor performance.
- Timing Failure: Due to a broken belt/chain, leading to valve-piston collision in interference engines.
- Camshaft Sensor Failure: Affects ignition timing and can trigger a check engine light.
8. Camshaft Maintenance:
- Regular oil changes to prevent wear.
- Timely replacement of the timing belt or chain (usually every 60,000–100,000 miles).
- Monitor for signs like misfires, ticking noises, or engine performance loss.
9. Performance Camshafts:
Aftermarket camshafts can modify engine behavior:
- Street Cams: Mild increase in performance with drivability.
- Race Cams: High power at high RPMs but poor idle and low-RPM behavior.
10. Summary:
The camshaft is essential for controlling the breathing of the engine. Whether in a high-performance sports car or a fuel-efficient commuter, proper camshaft design and maintenance are key to engine health and performance.
FAQ Section:
What is a camshaft?
A camshaft is a rotating shaft with lobes (cams) that control the opening and closing of an engine’s intake and exhaust valves.
What does a camshaft do?
It times the valve movements to match the position of the pistons for proper combustion.
Where is the camshaft located?
It can be in the engine block (cam-in-block, like in pushrod engines) or in the cylinder head (overhead cam, or OHC).
What is the difference between SOHC and DOHC?
SOHC = Single Overhead Camshaft, DOHC = Dual Overhead Camshaft. DOHC allows better valve control and performance.
How is the camshaft driven?
Usually by a timing chain, timing belt, or timing gears connected to the crankshaft.
What is camshaft duration?
The amount of time a valve stays open, measured in degrees of crankshaft rotation.
What is camshaft lift?
How far the valve opens, which affects airflow into the cylinder.
What does a performance camshaft do?
It increases valve lift and duration to improve power at higher RPMs.
Can a camshaft increase horsepower?
Yes—performance cams can significantly increase power when matched with other upgrades.
What is camshaft lobe separation angle (LSA)?
The angle between the intake and exhaust lobes; it affects idle quality and powerband.
What are signs of a bad camshaft?
Ticking noise, misfires, poor performance, rough idle, or metal in the oil.
Can a worn camshaft damage an engine?
Yes, it can cause poor valve timing, reduced performance, or valve damage.
How long does a camshaft last?
Often over 150,000 miles, but depends on oil quality and engine stress.
Can a camshaft be repaired?
Usually, it’s replaced, not repaired, though mild damage can be polished in rare cases.
Is camshaft replacement expensive?
It can be—labor-intensive jobs range from a few hundred to several thousand dollars.
