As the automotive industry shifts towards sustainability, electric and hybrid engines are becoming more common. These engines aim to reduce fuel consumption, emissions, and reliance on fossil fuels.
In this article:
- 1. Definitions:
- Working of Electric vehicle:
- Working of Hybrid vehicle:
- 2. Technology & Powertrain:
- 3. Cost (Purchase & Operation):
- 4. Maintenance:
- 5. Environmental Impact
- 6. Performance:
- 7. Range & Refueling:
- 8. Types of Hybrids:
- 9. Pros & Cons Summary
- Conclusion:
- FAQ On Electric Vehicles:
- 10 FAQ On Hybrid vehicles:
1. Definitions:
Electric Vehicle (EV):
A vehicle powered entirely by an electric motor using energy stored in rechargeable batteries, with no gasoline engine
- Powered 100% by electricity
- Uses electric motors and large battery packs
- No internal combustion engine (ICE) or gasoline tank
- Example: Tesla Model 3, Nissan Leaf
Hybrid Vehicle (HEV):
A vehicle that combines a gasoline engine with an electric motor to improve fuel efficiency and reduce emissions.
- Combination of electric motor and internal combustion engine
- Can switch between or use both systems simultaneously
- Example: Toyota Prius, Honda Insight

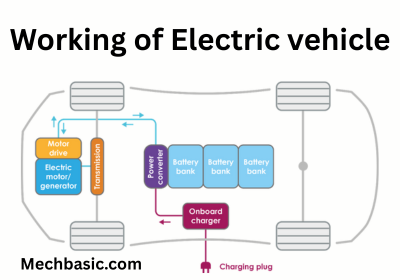

Working of Electric vehicle:
- Battery Pack: Stores electrical energy (usually lithium-ion) that powers the electric motor.
- Power Control Unit (Inverter): Converts the battery’s DC power into AC for the motor and regulates power flow.
- Electric Motor: Uses the electrical energy to generate torque and rotate the wheels—providing instant acceleration.
- Transmission (Single-Speed): Transfers power from the motor to the wheels.
- Regenerative Braking: Captures energy during braking and feeds it back into the battery to extend range.
✅ Result: Smooth, quiet, and efficient propulsion—without burning fuel or producing tailpipe emissions.
Battery Pack → Inverter → Electric Motor → Transmission → Wheels
And during braking:
Wheels → Electric Motor (regen mode) → Inverter → Battery

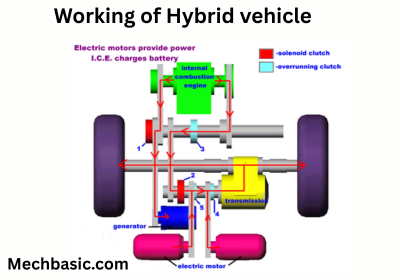

Working of Hybrid vehicle:
- Dual Power Sources: Combines an internal combustion engine (ICE) with an electric motor and a small battery.
- Start & Low-Speed Driving: Uses the electric motor for better efficiency and zero emissions.
- Acceleration & Cruising: Both engine and motor may work together for extra power and fuel efficiency.
- Regenerative Braking: Converts braking energy into electricity to recharge the battery.
- Engine Assist: The gasoline engine recharges the battery and powers the car when needed (e.g., high speeds or heavy loads).
✅ Result: Improved fuel economy and reduced emissions without needing to plug in.
2. Technology & Powertrain:
| Feature | EV | Hybrid (HEV) |
|---|---|---|
| Engine | Electric motor only | Gasoline engine + electric motor |
| Battery | Large lithium-ion battery | Small battery (recharged via ICE or braking) |
| Charging | Plug-in (home or station) | No plug-in (charges while driving) |
| Fuel Source | Electricity | Gasoline + regenerative braking |
3. Cost (Purchase & Operation):
| Aspect | EV | Hybrid |
|---|---|---|
| Initial Price | Typically higher | Generally lower than EVs |
| Fuel Cost | Lower (electricity is cheaper) | Moderate (better than regular ICE) |
| Maintenance Cost | Lower (fewer moving parts) | Moderate (still has ICE maintenance) |
| Incentives | May qualify for tax credits | Sometimes eligible, varies by country |
4. Maintenance:
Electric Vehicles:
- Fewer parts to service: no oil changes, spark plugs, timing belts
- Battery may degrade over time (10+ years typical life)
- Brake wear is minimal (due to regenerative braking)
Hybrids:
- Requires ICE maintenance: oil changes, filters, etc.
- Battery is smaller but can be costly to replace over long term
- Slightly more complex system (both ICE and electric parts)
5. Environmental Impact
| Aspect | EV | Hybrid |
|---|---|---|
| Emissions (Driving) | Zero tailpipe emissions | Reduced, but still emits CO₂ |
| Emissions (Lifecycle) | Depends on electricity source | Generally better than ICE, not as clean as EV |
| Noise Pollution | Very low | Lower than ICE, higher than EV |
6. Performance:
- EVs offer instant torque, smooth and fast acceleration.
- Hybrids are efficient, but not performance-oriented.
- EVs are generally quieter and offer a smoother ride.
7. Range & Refueling:
| Feature | EV | Hybrid |
|---|---|---|
| Driving Range | 150–400+ miles (varies widely) | 500–700 miles (no range anxiety) |
| Refueling Time | 30 min to 12 hrs (charger dependent) | ~5 min (just like a gas car) |
| Infrastructure | Growing, but limited in some areas | Widespread gas station availability |
8. Types of Hybrids:
- Full Hybrid (HEV) – Can drive short distances on electricity alone.
- Mild Hybrid (MHEV) – Electric motor assists but can’t power the car alone.
- Plug-in Hybrid (PHEV) – Larger battery, can be charged via plug, drives 20–50 miles on electric only.
9. Pros & Cons Summary
EV Pros:
- Zero emissions
- Lower running costs
- Smooth, quiet, quick acceleration
- Fewer maintenance needs
EV Cons:
- Higher upfront cost
- Range anxiety
- Charging infrastructure still growing
- Long charging times (compared to refueling).
Also Read : Latest Electric cars in 2025.
Hybrid Pros:
- Excellent fuel economy
- No range anxiety
- Lower emissions than ICE
- Familiar refueling process
Hybrid Cons
- More complex powertrain
- Still dependent on fossil fuels
- Not zero-emissions
- Battery replacement can be pricey long-term.
Also Read: Latest hybrid vehicles in 2025.
Conclusion:
- Choose an EV if: You want to go fully green, have good charging access, and prioritize low operating costs.
- Choose a Hybrid if: You need convenience, want better fuel economy than a gas car, and don’t want to worry about charging.
FAQ On Electric Vehicles:
1. How far can an electric vehicle go on a single charge?
Most EVs today offer 150 to 400+ miles of range depending on the model, battery size, and driving conditions.
2. How long does it take to charge an EV?
Charging time varies:
- Level 1 (home outlet): 8–20+ hours
- Level 2 (home/charging station): 4–8 hours
- DC Fast Charging: 20–60 minutes (80% charge)
3. Are electric vehicles more expensive than gas cars?
Yes initially, but lower running and maintenance costs, plus government incentives, can make EVs cheaper long-term.
4. Do EVs require a lot of maintenance?
No. EVs have fewer moving parts, no oil changes, and less brake wear due to regenerative braking—making them cheaper to maintain.
5. Are electric vehicles really better for the environment?
Yes—EVs produce zero tailpipe emissions and even with grid electricity, they typically have a lower carbon footprint than gas vehicles.
6. How long do EV batteries last?
Most EV batteries last 8–15 years, and many manufacturers offer warranties for 8 years or 100,000+ miles.
7. What happens if I run out of charge?
Just like a gas car out of fuel—you’ll need roadside assistance or a mobile charger. Planning ahead is key for EV travel.
8. Can I charge my EV at home?
Yes! You can plug into a standard outlet or install a Level 2 home charger for faster charging.
9. Are EVs fast?
Absolutely. Most EVs deliver instant torque and quick acceleration. Some (like Teslas) can go from 0–60 mph in under 3 seconds.
10. Is there enough charging infrastructure?
Charging networks are growing fast, especially in urban areas and along highways. Still, availability may vary by location.
10 FAQ On Hybrid vehicles:
1. What is a hybrid vehicle?
A hybrid vehicle combines a gasoline engine with an electric motor to improve fuel efficiency and reduce emissions.
2. Do I need to charge a hybrid car?
Standard hybrids (HEVs) do not need to be plugged in—they recharge their battery through regenerative braking and the engine.
(Plug-in hybrids (PHEVs) do require charging.)
3. Are hybrid cars more expensive than regular cars?
Usually yes, but they save money over time through better fuel economy and lower emissions taxes or incentives.
4. Do hybrid vehicles require special maintenance?
Not necessarily. Maintenance is similar to gas cars, though battery replacement (after many years) can be costly.
5. How fuel-efficient are hybrid cars?
Most hybrids offer 20–50% better fuel economy than conventional gas vehicles—some achieve over 50 MPG.
6. How does a hybrid decide when to use electricity or gas?
The vehicle’s computer system automatically switches between the engine and electric motor based on speed, load, and driving conditions.
7. How long do hybrid batteries last?
Hybrid batteries typically last 8–15 years or 100,000–150,000+ miles, with many coming with extended warranties.
8. Are hybrids good for the environment?
Yes—hybrids emit less CO₂ and pollutants than gas-only vehicles, though not as clean as full EVs.
9. What is regenerative braking?
It’s a system where the electric motor recaptures energy during braking and stores it in the battery, improving efficiency.
10. Can hybrids drive in electric-only mode?
Full hybrids can drive short distances on electric power alone, usually at low speeds. Mild hybrids cannot.
