1.What is a clutch in an automobile?

A clutch system is a crucial part of a vehicle’s power transmission system. It connects and disconnects the engine’s power to the gearbox, enabling smooth engagement, disengagement, and gear shifting.

2. Purpose of a Clutch

The clutch serves several key functions:

Engages & disengages power between the engine and transmission.
Allows smooth gear shifting without grinding.
Prevents engine stalling when starting or stopping.
Absorbs shocks & vibrations, protecting the drivetrain.
Helps in gradual power transmission (smooth acceleration).

3. Main Components of a Clutch System:

A typical clutch system has the following components:

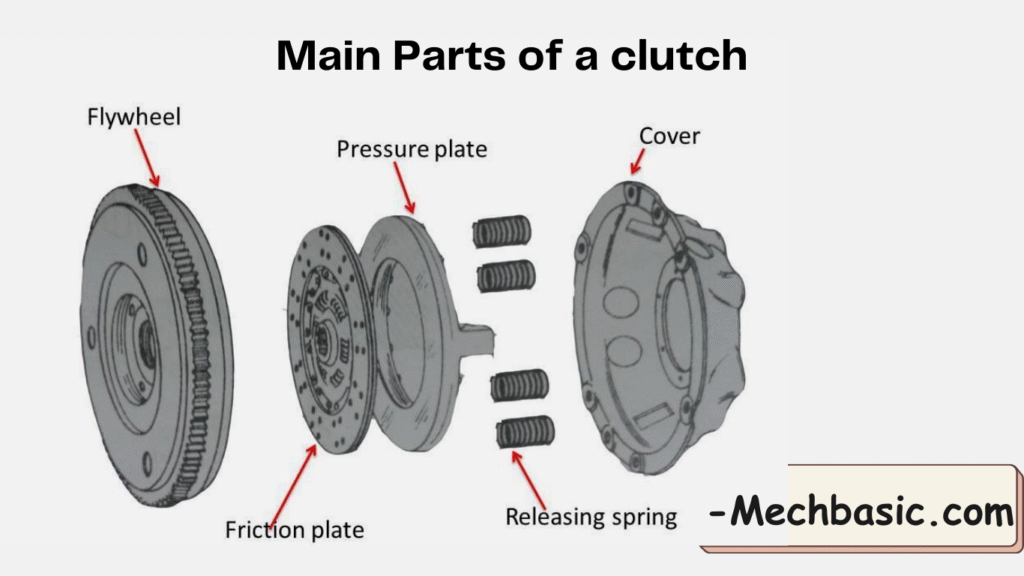

1. Flywheel

Bolted to the engine crankshaft.
Provides a friction surface for the clutch disc.
Helps maintain engine inertia and smooth rotation.

2. Clutch Disc (Friction Plate)

A round plate lined with friction material (similar to brake pads).
Mounted on a splined hub that slides on the transmission input shaft.
When pressed against the flywheel, it transmits torque.

3. Pressure Plate

A spring-loaded plate that presses the clutch disc against the flywheel.
Houses diaphragm springs or coil springs.
Ensures proper engagement and disengagement of power.

4. Release System

Release Bearing (Throw-out Bearing): Transfers force from clutch pedal to pressure plate.
Clutch Fork: Lever that moves the release bearing.
Linkage / Hydraulic System: Mechanical linkage, cable, or hydraulic cylinder that connects pedal movement to the clutch fork.

5. Clutch Pedal

Driver-operated lever inside the cabin.
Initiates engagement/disengagement process.

4. Working Principle of the Clutch

The clutch works on the principle of friction.

✅ Engaged Position

Clutch pedal released.
Pressure plate pushes clutch disc tightly against the flywheel.
Torque flows from engine → flywheel → clutch disc → transmission input shaft → wheels.

✅ Disengaged Position

Clutch pedal pressed.
Release bearing pushes pressure plate springs → pressure plate moves back.
Clutch disc separates from flywheel → power flow interrupted → gearbox can shift smoothly.

5. Types of Clutch Systems

Clutches can be classified based on design and actuation:

🔧 Based on Construction:

Single Plate Clutch – Most common in cars and light vehicles.
Multi-Plate Clutch – Used in motorcycles, racing cars (for high torque transmission).
Cone Clutch – Used in older vehicles, some special applications.
Centrifugal Clutch – Automatic engagement based on engine speed (scooters, mopeds).

🔧 Based on Operation:

Mechanical (Cable-operated) – Simple, used in older cars.
Hydraulic Clutch – Uses master & slave cylinders for smooth operation.
Electromagnetic Clutch – Controlled electronically, common in hybrid vehicles.
Semi-Automatic / Dual-Clutch Systems – Found in modern automatic & semi-automatic transmissions.

6. Common Clutch Problems

Slipping Clutch: Worn friction lining → power loss.
Hard Clutch: Faulty cable or pressure plate → difficult pedal movement.
Clutch Judder: Uneven friction surface → vibrations.
Clutch Drag: Incomplete disengagement → hard gear shifting.

7. Maintenance Tips

Avoid riding the clutch (keeping foot on pedal partially pressed).
Ensure timely replacement of worn clutch disc and release bearing.
Maintain proper clutch free play (if adjustable).
Regularly check hydraulic fluid levels (for hydraulic clutches).

Summary:

The clutch system is a key part of a vehicle’s transmission that connects and disconnects the engine from the gearbox, enabling smooth gear shifts without stopping the engine. It consists mainly of a clutch plate, pressure plate, flywheel, release bearing, and a pedal mechanism (cable or hydraulic).

When the clutch pedal is pressed, power flow is interrupted, allowing gear changes; when released, power is transmitted to the wheels. A well-functioning clutch ensures smooth driving, while issues like slipping, noise, or hard pedal operation indicate wear or failure. Proper driving habits, such as avoiding riding the clutch, help extend its lifespan.

Also watch: Clutch Engage vs Clutch disengage animation.

FAQ Section:

1. What is a clutch system in an automobile?

The clutch system is a mechanical device that engages and disengages the power transmission between the engine and the gearbox, allowing smooth gear changes without stopping the engine.

2. What are the main components of a clutch system?

The key components are:

Clutch pedal
Clutch master & slave cylinder (in hydraulic systems)
Clutch plate (driven plate)
Pressure plate
Flywheel
Release bearing (throw-out bearing)

3. How does a clutch work?

When you press the clutch pedal, the release bearing disengages the pressure plate, which separates the clutch plate from the flywheel. This interrupts power flow, allowing you to shift gears smoothly.

4. What are the types of clutch systems?

Single plate clutch (most common in cars)
Multi-plate clutch (used in motorcycles, racing cars)
Centrifugal clutch
Hydraulic clutch
Electromagnetic clutch

5. What are signs of a worn-out clutch?

Difficulty shifting gears
Slipping clutch (engine revs but vehicle doesn’t accelerate proportionally)
Burning smell
Unusual noise when pressing the clutch pedal
Clutch pedal feels too soft or too hard

6. How long does a clutch last?

Typically 50,000 to 100,000 km, but lifespan depends on driving habits, vehicle type, and maintenance. Frequent stop-and-go driving or riding the clutch reduces its life.

7. What is “clutch slipping”?

Clutch slipping occurs when the clutch plate fails to fully engage with the flywheel, causing a loss of power transmission. This can lead to poor acceleration and excessive heat, damaging the clutch.

8. What is the difference between a hydraulic and cable-operated clutch?

Cable-operated: Uses a steel cable to pull the release mechanism; simpler but can feel heavier.
Hydraulic: Uses fluid pressure for smoother and lighter operation; self-adjusting but slightly more expensive to maintain.

9. What is the purpose of a clutch release bearing?

It allows smooth engagement and disengagement by reducing friction between the rotating pressure plate and the stationary clutch fork when the pedal is pressed.
