In this article, we give a detailed explanation of the Automatic Transmission (AT) system in automobiles.

Automatic Transmission System:

1. What is an automatic transmission system?

An automatic transmission is a system that automatically changes the vehicle’s gear ratios as it moves, without the driver needing to operate a clutch or manually shift gears.
It allows smooth acceleration, optimal engine performance, and ease of driving, especially in stop-and-go traffic.

2. Purpose of Automatic Transmission

Automatically select the appropriate gear ratio based on speed and load.
Maintain smooth acceleration and deceleration.
Improve fuel efficiency by optimizing engine RPM.
Reduce driver effort (no clutch pedal operation).

3. Main Components

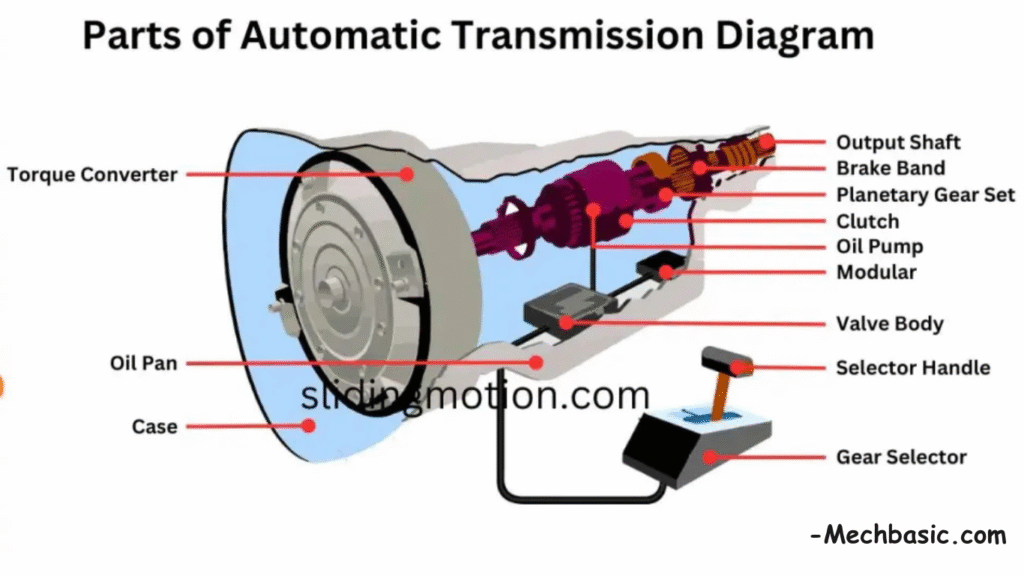

**Parts of automatic transmission system.**

1. Torque Converter

Replaces the manual clutch.
Connects engine to the transmission input shaft.
Functions:
- Transmit torque from engine to gearbox.
- Multiply torque at low speeds for better acceleration.
- Allow slippage so the car can stop without stalling the engine.
Main parts:
- Pump / impeller (connected to engine)
- Turbine (connected to gearbox input)
- Stator (redirects fluid to improve efficiency)

2. Planetary Gear Sets

Provide multiple gear ratios (forward and reverse) in a compact space.
Consist of:
- Sun gear (center)
- Planet gears (rotating around sun gear)
- Ring gear (outer gear)
Gear ratios change by holding, driving, or releasing different components using clutches and brakes.

3. Hydraulic System

Uses transmission fluid to operate clutches and brakes inside the transmission.
Controls torque flow, gear engagement, and lubrication.

4. Valve Body

The “brain” of the hydraulic system.
Routes hydraulic fluid to the correct clutch packs and brakes to select gears.
Modern systems use electronically controlled solenoids for precision.

5. Clutches and Brake Bands

Multiple wet or dry clutches engage/disengage different gear elements.
Brake bands hold parts of the planetary gear set stationary to create different ratios.

6. Transmission Fluid

Acts as:
- Hydraulic fluid for gear control
- Lubricant for moving parts
- Coolant to prevent overheating

4. Working Principle

Engine Torque → Torque Converter
- Fluid in torque converter transmits torque to input shaft.
- Allows smooth start from rest (slippage possible).
Gear Selection → Planetary Gear Sets
- Clutches and bands engage/release gears to provide:
  - Low gear → high torque, low speed
  - High gear → low torque, high speed
  - Reverse gear
Hydraulic Control → Automatic Gear Changes
- Hydraulic pressure from transmission fluid operates clutches and bands.
- Electronically controlled solenoids adjust fluid routing in modern systems.

5. Features / Advantages

No clutch pedal → easier to drive.
Smooth gear shifts → reduces jerks.
Better in traffic → no constant gear shifting.
Torque multiplication → better low-speed acceleration via torque converter.

6. Disadvantages

Lower fuel efficiency than manual in older systems (modern ATs and CVTs are efficient).
Complex and expensive to repair.
Heavier → adds vehicle weight.
Requires regular transmission fluid changes.

7. Types of Automatic Transmission

Type	Features	Applications
Hydraulic Automatic (Traditional AT)	Uses torque converter + planetary gear sets + hydraulic valves	Most modern cars
Continuously Variable Transmission (CVT)	Uses belt and pulleys → infinite gear ratios	Scooters, compact cars
Dual-Clutch Transmission (DCT)	Two clutches for alternate gear sets → fast shifts	Sports cars, high-performance vehicles
Automated Manual Transmission (AMT)	Manual gearbox with automated clutch control	Budget cars, semi-automatic driving

8. Common Problems

Fluid leaks → slipping, poor performance.
Overheating → torque converter or clutch damage.
Delayed or harsh shifts → valve body or solenoid issues.
Contaminated fluid → clutch pack wear.

Summary

The automatic transmission system =
Torque Converter + Planetary Gear Sets + Clutches & Bands + Hydraulic/Electronic Control

It automatically adjusts gear ratios to optimize speed, torque, and engine performance, providing smooth and easy driving without manual clutch operation.

FAQ Section:

1. What is an automatic transmission system?

An automatic transmission is a type of vehicle transmission that changes gear ratios automatically as the vehicle moves, allowing the driver to focus on acceleration and braking rather than manual gear shifting.

2. How does an automatic transmission work?

It uses a torque converter, planetary gear sets, and hydraulic or electronic controls to automatically select the right gear ratio based on speed, throttle position, and load conditions.

3. What are the main components of an automatic transmission?

Key components include:

Torque Converter
Planetary Gear Sets
Hydraulic System
Electronic Control Unit (ECU)
Transmission Fluid

4. What is the function of the torque converter?

The torque converter transfers power from the engine to the transmission and allows the car to stop without stalling the engine. It also multiplies torque for better acceleration.

5. What type of fluid does an automatic transmission use?

Automatic transmissions use Automatic Transmission Fluid (ATF), which lubricates moving parts, cools the system, and transmits hydraulic pressure for gear shifts.

6. How often should transmission fluid be changed?

Typically every 30,000–60,000 miles (48,000–96,000 km), but it depends on the vehicle model and driving conditions. Always check the manufacturer’s recommendation.

7. What are common problems in automatic transmissions?

Common issues include:

Slipping gears
Rough or delayed shifting
Fluid leaks
Overheating
Transmission warning light on dashboard

8. How can I maintain my automatic transmission?

Check and replace ATF regularly
Avoid sudden acceleration or towing heavy loads
Use the correct transmission fluid type
Get periodic professional inspections

9. What is the difference between CVT and traditional automatic transmission?

A CVT (Continuously Variable Transmission) uses pulleys and a belt instead of fixed gears, allowing infinite gear ratios for smoother acceleration and better fuel efficiency, unlike traditional automatics with set gear steps.
