The air intake system in an automobile is a crucial component of the engine’s air-fuel delivery system, responsible for bringing clean, measured air into the engine for combustion. The efficiency and performance of an engine depend heavily on the design and functionality of this system.
In this article:
What Is the Air Intake System?
The air intake system delivers oxygen-rich air from the atmosphere into the engine’s combustion chamber, where it mixes with fuel. This air is essential for complete combustion, which powers the engine.
Also Read: Exhaust system in automobile

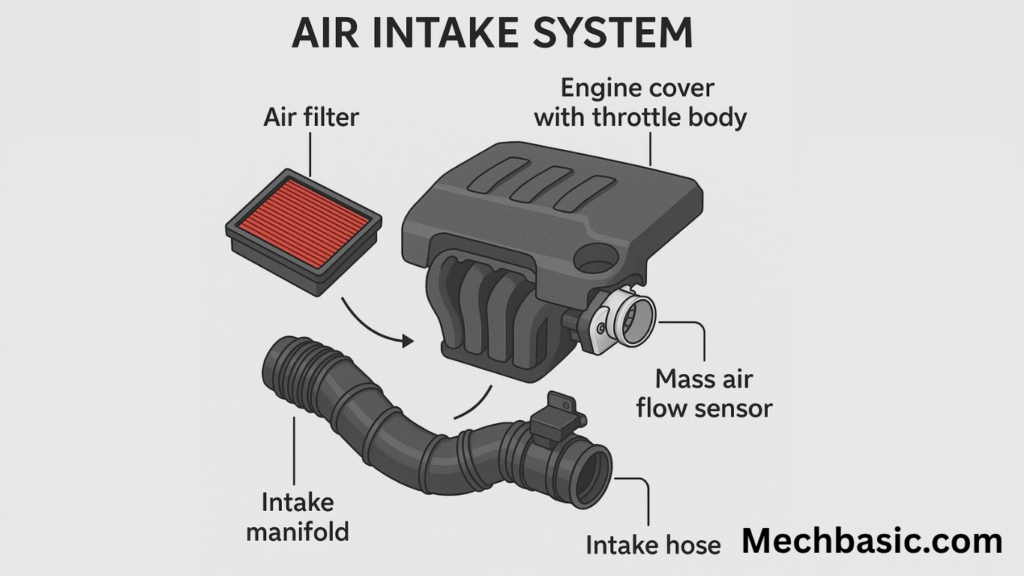

Main Components of an Air Intake System
1. Air Filter
- Purpose: Cleans the incoming air by removing dust, dirt, and debris.
- Types: Paper, foam, or cotton gauze filters.
- Importance: Prevents contaminants from entering the engine, which can cause wear or damage.
2. Air Intake Duct / Snorkel
- Purpose: Draws air from outside the engine compartment.
- Function: Channels cooler, denser air into the intake system for better combustion.
- Performance models often have larger or repositioned ducts.
3. Mass Air Flow (MAF) Sensor
- Purpose: Measures the amount and temperature of incoming air.
- Importance: Sends data to the engine control unit (ECU) to adjust the fuel injection accordingly.
4. Throttle Body
- Purpose: Regulates the amount of air entering the intake manifold.
- Controlled by: The accelerator pedal, either mechanically (cable) or electronically (“drive-by-wire”).
5. Intake Manifold
- Purpose: Distributes the air (or air-fuel mixture) evenly to each engine cylinder.
- Design: Tuned for airflow efficiency, sometimes equipped with variable-length runners.
6. Air Resonator (optional)
- Purpose: Reduces intake noise and smoothens airflow.
- Often found in modern vehicles for cabin quietness.
How the Air Intake System Works (Step-by-Step)
- Air Enters Through the Snorkel: External air is drawn into the system.
- Air Passes Through the Air Filter: Dust and debris are removed.
- MAF Sensor Measures the Air: Information sent to ECU.
- Throttle Body Controls Flow: Adjusts how much air reaches the engine.
- Intake Manifold Distributes Air: Sends air to each combustion cylinder.
- Air Mixes With Fuel: The air-fuel mix is ignited in the combustion chamber.
Types of Air Intake Systems
Also Read: Types of air intake system in detail.
| Type | Description | Common In |
|---|---|---|
| Cold Air Intake (CAI) | Draws cooler, denser air from outside the engine bay for better performance. | Performance or modified vehicles |
| Short Ram Intake (SRI) | Shorter, straighter pipe that allows quicker airflow, often louder and less filtered. | Modified street cars |
| Stock/Factory Intake | Designed for efficiency, emissions, and quiet operation. | Most passenger vehicles |
| Turbocharged/Supercharged Intake | Air is compressed by a turbo or supercharger before entering the intake. | High-performance or forced-induction engines |
Why It Matters
- Performance: More air = more power (with proper fuel mix).
- Fuel Efficiency: Optimal air-fuel ratio improves mileage.
- Emissions Control: Balanced airflow helps reduce pollutants.
- Engine Longevity: Clean air reduces wear on internal engine parts.
Common Problems in Air Intake Systems
| Issue | Effect |
|---|---|
| Dirty air filter | Reduced airflow, poor performance |
| Faulty MAF sensor | Incorrect fuel mixture, poor mileage |
| Air leaks/cracks in ducting | Unmetered air disrupts engine control |
| Clogged intake manifold | Reduced air distribution, rough running |
Maintenance Tips
- Replace air filter every 12,000–15,000 miles (or as recommended).
- Inspect intake hoses for cracks or leaks.
- Clean MAF sensor periodically with appropriate cleaner.
- Ensure throttle body and manifold are clean and functional.
Summary:
The air intake system is essential for delivering clean, measured air to the engine. Its performance affects everything from power and fuel economy to emissions and engine lifespan. Regular maintenance and upgrades can significantly boost a vehicle’s efficiency and performance.
Video Guide : How air intake system works
FAQ Section:
1. What is the purpose of an air intake system?
It delivers clean, filtered air to the engine for the combustion process, which is essential for engine performance and efficiency.
2. What are the main components of an air intake system?
Air filter, intake manifold, throttle body, mass airflow sensor (MAF), and intake ducting or piping.
3. How does the air filter work?
It traps dust, dirt, and debris from the air before it enters the engine, preventing internal damage.
4. What is a cold air intake system?
An aftermarket system designed to draw cooler air from outside the engine bay, improving combustion and increasing horsepower.
5. How often should I replace my air filter?
Typically every 12,000 to 15,000 miles, but it depends on driving conditions and manufacturer recommendations.
6. What is the role of the mass airflow (MAF) sensor?
It measures the amount of air entering the engine so the ECU can adjust the fuel injection accordingly.
7. Can a dirty air filter affect performance?
Yes, it can restrict airflow, reduce engine power, lower fuel efficiency, and increase emissions.
8. What’s the difference between a short ram and a cold air intake?
Short ram intakes draw warmer air from the engine bay but are more compact; cold air intakes draw cooler, denser air from outside, often improving performance.
9. Is it safe to install an aftermarket air intake?
Generally yes, if installed properly and it meets emissions regulations. Some may void the warranty or affect sensors.
10. What are symptoms of a faulty air intake system?
Poor acceleration, rough idling, reduced fuel economy, check engine light, or unusual engine noises.
